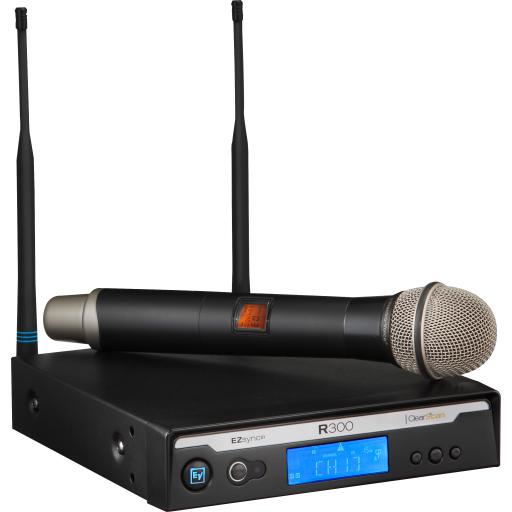

The R300-HD is a handheld wireless system that operates in the UHF frequency range. It is suitable for any application where the convenience of a handheld transmitter is required. The HT-300 handheld transmitter is constructed with metal, making it durable enough to withstand the wear and tear of daily use, while still being lightweight and comfortable to hold.
The PL22 dynamic microphone is included with the system and is an excellent all-around microphone for singing, speaking engagements, and emcees. Its cardioid pickup pattern helps to reject sounds from the surroundings, control audio feedback, and still allows an experienced vocalist to work the microphone.

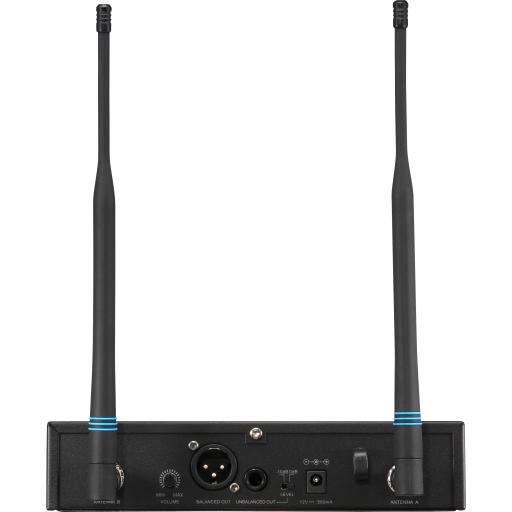

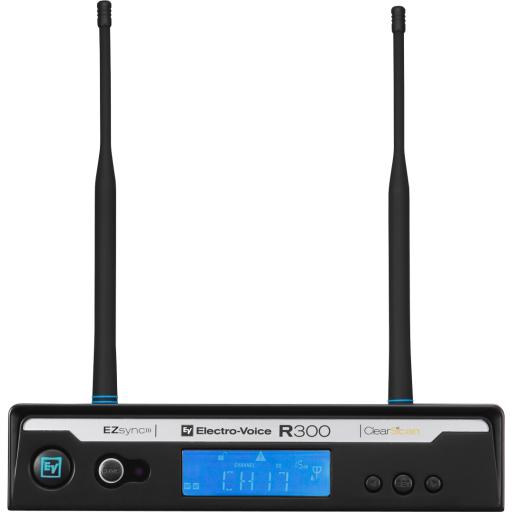

The receiver features dual antenna diversity, which helps to prevent signal dropouts, ensuring a reliable wireless connection. The receiver's sturdy metal frame and chassis make it durable and suitable for use on a tabletop, or it can be rack-mounted with optional rack mounting hardware.
Overall, the R300-HD wireless system is a robust and reliable choice for anyone in need of a handheld wireless system, whether it be for live performances, presentations, or other applications where mobility is key.
Features
- ClearScan automatically finds the clearest channel
- EZsync one-step channel setup
- PL22 cardioid dynamic microphone element
- 14 hour battery life from two AA alkaline
- Rugged metal transmitter
- Metal receiver chassis with optional rack mount
Specs
Modulation Number of Channels |
± 40 kHz 32 |
Diversity | True Antenna |
RF Sensitivity | <1.0 μV for 12 dB SINAD |
Image Rejection | > 55 dB |
Squelch | Tone Code plus Amplitude |
Power Requirements | 12-16 VDC, 500mA max |
Operating Temperature | 5°C to 45°C (41°F to 113°F) |
Dimensions | 43 mm H x 206 mm W x 210 mm D (1.72 in H x 7.8 in W x 8.0 in D) |
Audio Parameters | |
Frequency Response | 80 Hz - 18 kHz ± 2 dB |
Balanced Output | 20 dBV (max @ 40 kHz deviation) |
Unbalanced Output | Adjustable 8 mV to 0.755V RMS |
Distortion | < 1.0%, 0.4% typical (ref 1 kHz, 40 kHz deviation) |
Signal-to-Noise Ratio | > 100 dB A-Weighted |
Dynamic Range | > 95 dB |
BP-300 and HT-300 Transmitter Specifications | |
Radiated Output | 8 mW typical |
Back Lit LCD Display | Channel, Frequency, Mute, and Battery Level |
Microphone Head | Electro-Voice PL22 Cardioid Dynamic |
Standard Lavalier Microphone | Electro-Voice ULM18 Uni-Directional Condenser |
TA4F Connector Wiring | Pin 1 Ground; Pin 2 Mic Input; Pin 3 +5V bias; Pin 4 +5V thru 2.2k Ω |
Power Requirement | Two AA batteries |
Battery Life (Typical) | > 14 hours with AA alkaline typical |
Bodypack Antenna | Flexible external 1/4 wave |
Handheld Antenna | Internal proprietary |
Dimensions (Bodypack) | 84 mm H x 66 mm W x 23 mm D (3.3 in H x 2.6 in W x 0.89 in D) |
Dimensions (Handheld) | 26.7 cm (10.57 in) Long |
