Product Description

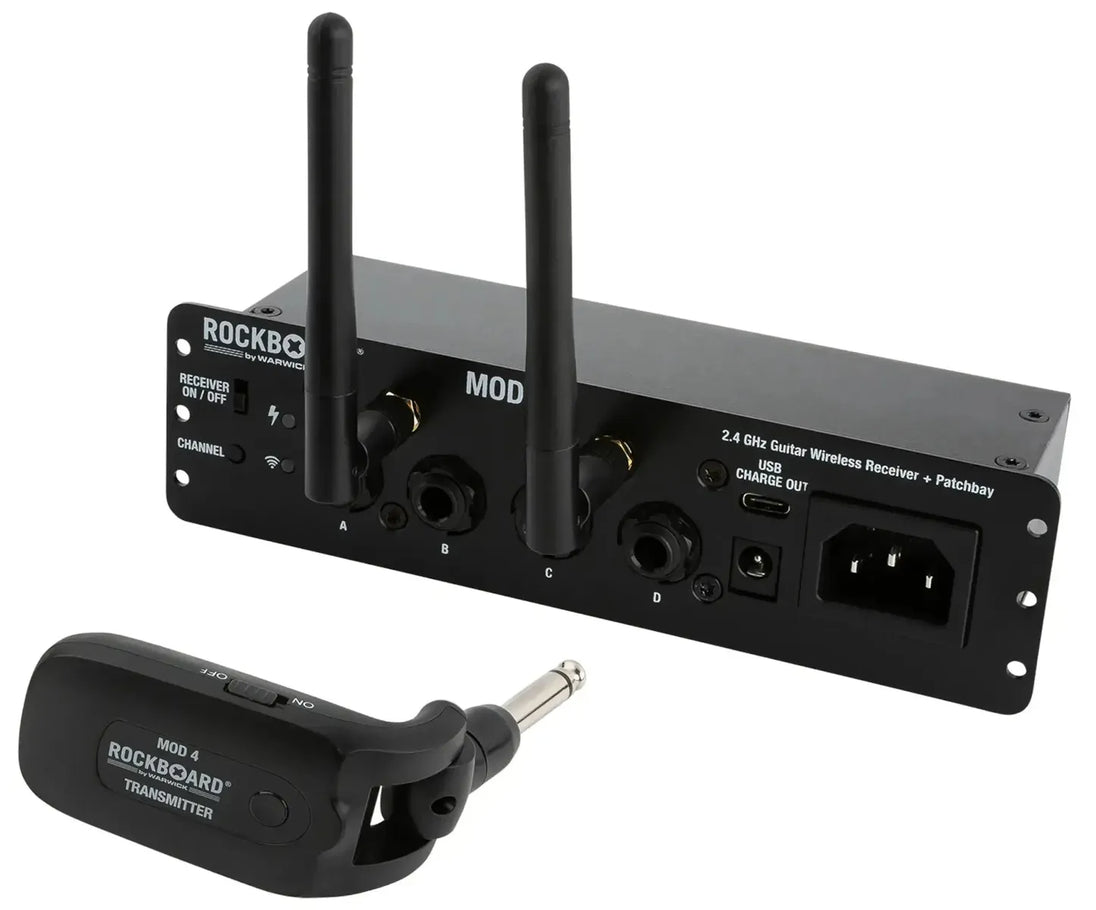

The Rockboard MOD 4 with XVive U2 transmitter transforms your pedalboard setup into a streamlined, professional rig. This all-in-one solution consolidates every connection at a single access point, cutting your gig setup time to seconds. The integrated wireless system operates on 2.4 GHz technology with crystal-clear sound quality, minimal 5 ms latency, and worldwide compatibility. Route all your pedalboard connections through the centralized patchbay for instant access and cleaner cable management. Whether you're a touring musician or weekend warrior, the MOD 4 delivers the reliability and ease you need to focus on your performance, not your gear.
- wireless system receiver + patchbay for pedalboards, incl. wireless transmitter
- 2.4 GHz ISM band for worldwide use
- 30 m / 100 ft. approx. range (without obstacles)
- 24-bit / 48 kHz uncompressed digital transmission
- 20 Hz - 20 kHz frequency range
- 5 ms latency
- > 103 dB dynamic range
- - 85 dBm RF sensitivity
- 0.2% total harmonic distortion
- 4 selectable channels
- fits MOD slots in RockBoard pedalboards
- compatible with a wide variety of other pedalboards
- acts as the central access point to your effects setup
- detachable front plate for mounting on top or underneath pedalboards

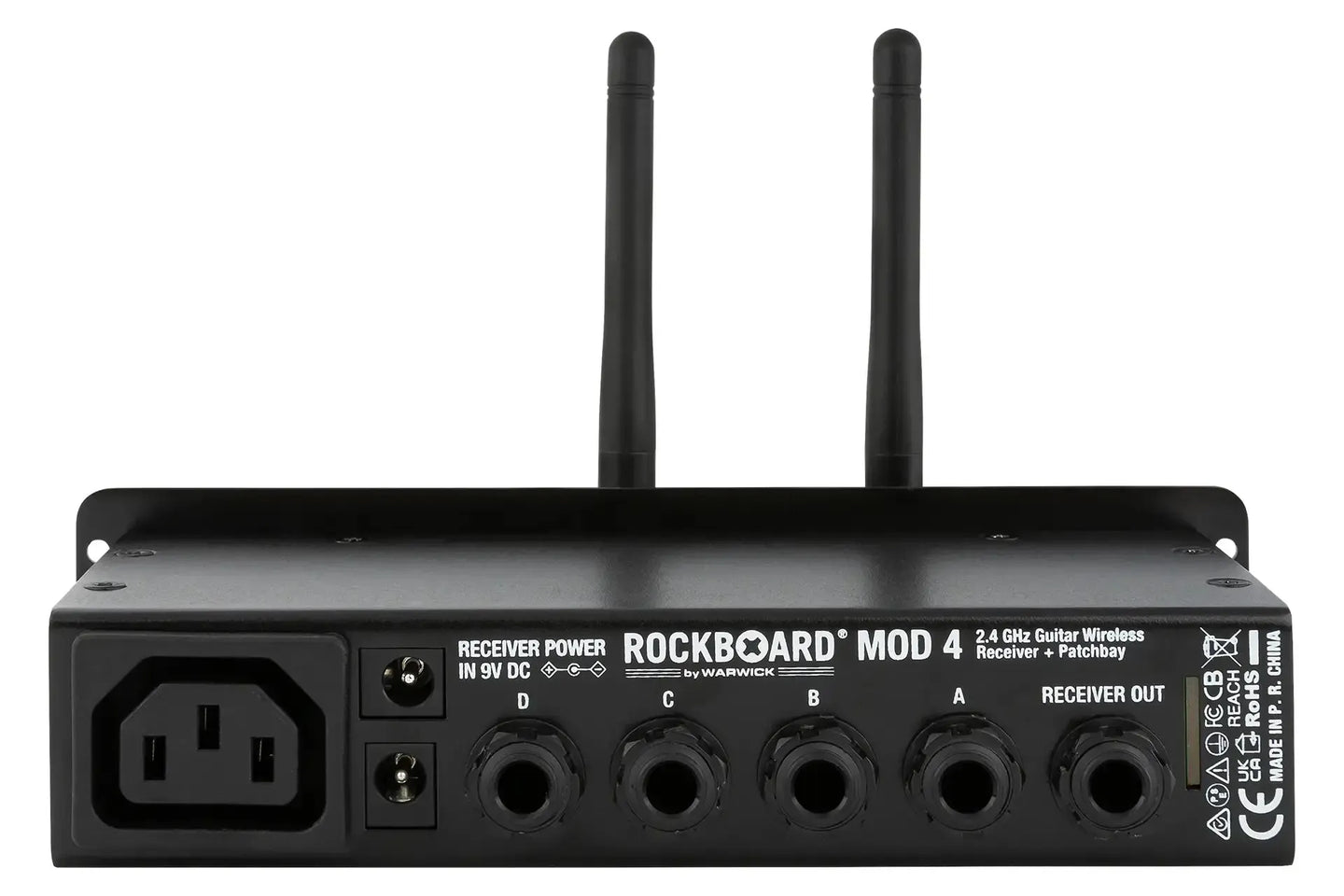

- 4x 6.3 mm / 1/4" stereo thru (TRS)
- 1x 6.3 mm / 1/4" mono receiver audio output (TS)
- 1x DC 2.1 x 5.5 mm barrel thru
- 1x AC IEC thru
- 1x USB Type C charge output
- power supply via optional 9V DC power adapter, 2.1 x 5.5 mm barrel plug, polarity (-) center
- battery operation not supported
- current draw 500 mA
- passive operation possible (patchbay only, without wireless system)
- dimensions with front plate (W x D x H) 175 x 85 x 47 mm / 6 57/64" x 3 11/32" x 1 27/32"
- dimensions without front plate (W x D x H) 160 x 85 x 33 mm / 6 19/64" x 3 11/32" x 1 19/64"
- weight 500 g / 1.1 lbs

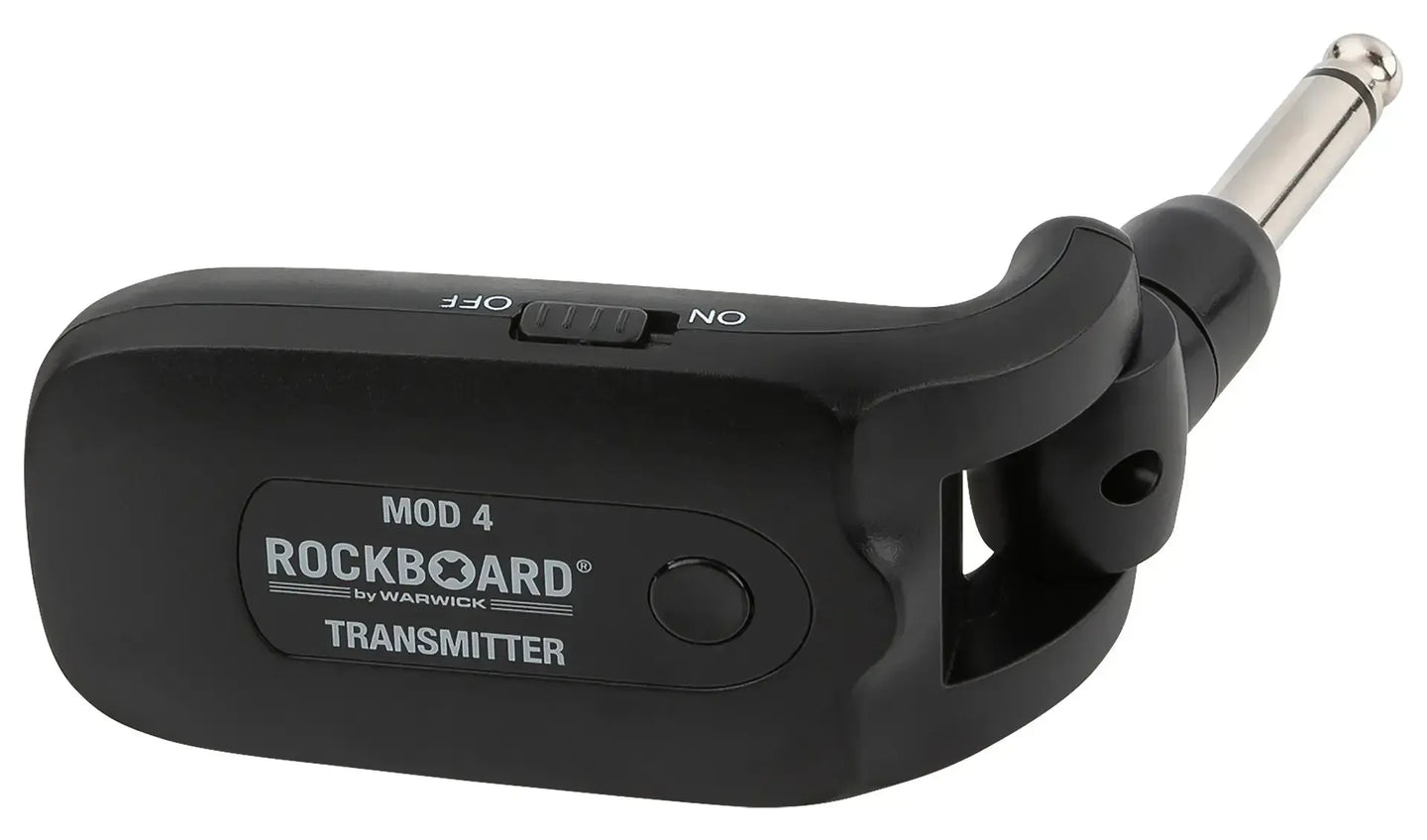

- including wireless transmitter, two antennas, USB charging cable, mounting screws, and counter nuts
