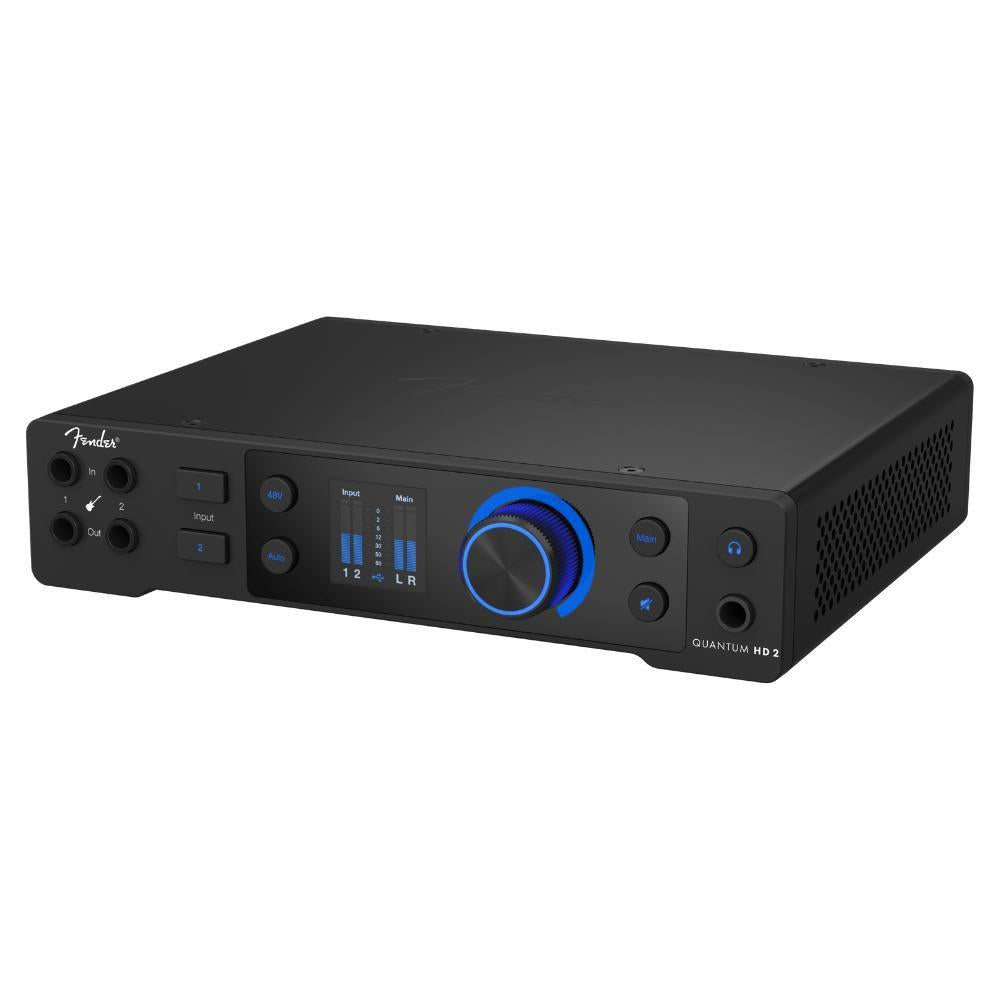

Fender Quantum HD 2 USB-C Audio Interface

• Ultra-high-fidelity USB-C recording interface with MAX-HD mic preamps
• 20 x 24 I/O configuration with high-performance 32-bit / 192 kHz converters
• Expanded Digital I/O: 16 ADAT channels and S/PDIF I/O.

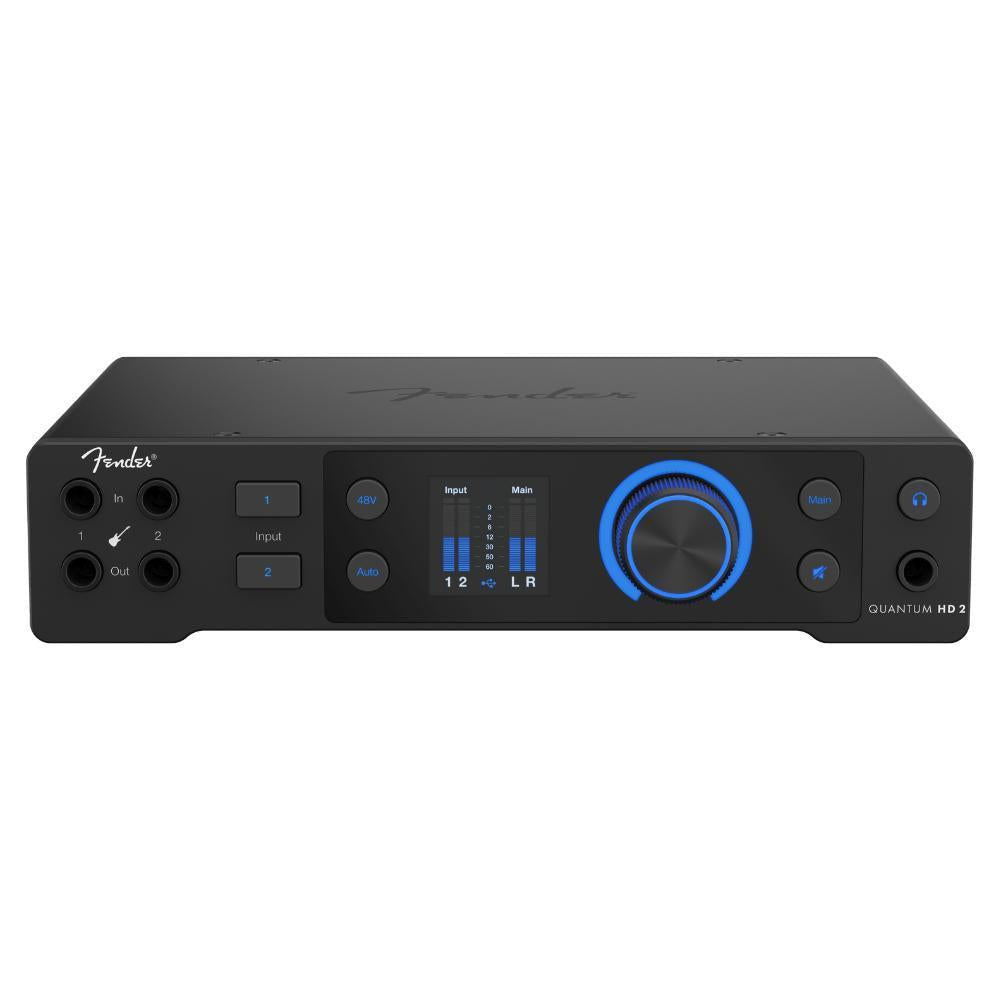

• Front-facing Fender instrument inputs optimized for guitar and bass
• Auto Gain button for instant, hassle-free recording levels
• Re-amp outputs for creative tone exploration with amps and pedals
• DSP monitor mixer and loopback routing for streaming and monitoring

Microphone Inputs

Connection Type: XLR Female (Combo), Balanced
Frequency Response: 20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz)
Input Impedance: 1600 Ohms
Dynamic Range: 116 dB (A-Weighted, Minimum Gain)
EIN: -130 dBu (Maximum Gain, 150 Ohms, 20 kHz BW, A-Weighted)
THD+N: 0.002% (1 kHz, Minimum Gain)
Gain Range: 75 dB
Maximum Input Level: +18 dBu (Balanced, Minimum Gain)
Phantom Power: +48 VDC

Line Inputs

Frequency Response: 20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz)
Input Impedance: 10K Ohms
Dynamic Range: 118 dB (A-Weighted, Minimum Gain)
THD+N: 0.001% (1 kHz, Minimum Gain)
Gain Range: ± 10 dB
Maximum Input Level: +18 dBu (Balanced, Minimum Gain)

Instrument Inputs

Frequency Response: 20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz)
Dynamic Range: 111 dB (A-Weighted, Minimum Gain)
THD+N: 0.003% (1 kHz, Minimum Gain)
Gain Range: 75 dB
Maximum Input Level: +21 dBu (Unbalanced, Minimum Gain)

Line Outputs

Connection Type: 1/4" TRS Female

Main Outputs

Connection Type: 1/4" TRS Female

Headphone Outputs

Connection Type: One - 1/4" TRS Female Stereo
Frequency Response: 20 Hz to 20 kHz, +/- 0.3 dB (Unity Gain, Reference 1 kHz)
Impedance Working Range: 33 Ohms
Dynamic Range: 118 dB (A-Weighted)
THD+N: 0.001% (1 kHz)
Maximum Output Level: 11 dBu (50 Ohms)

MIDI I/O

Connection Type: 5-Pin Female DIN

Power

Voltage: 120V
Voltage Requirements: 100-240 VAC, 50-60 Hz

Digital Audio

Connectivity: USB-C®
Bit Depth: 32-bit
Dynamic Range: 124 dB
Supported Sample Rates: 44.1, 48, 88.2, 96, 176.4, 192 (kHz)

Measurements

Height: 1.9" (48.3 mm)
Depth: 7.5" (191 mm)
Width: 8.5" (216 mm)
Weight: 2.9 lbs. (1.3 kg)
