Fender Quantum LT 16 USB-C Audio Interface

SKU 2777700614
$ 49999
$ 49999

Product Description

The Fender Quantum LT 16 is the ultimate interface in the LT series, built for project studios, multi-instrument setups, and electronic musicians who demand maximum flexibility. With eight MAX-HD mic preamps offering a massive 75 dB of gain — the most in its class — LT 16 captures pristine sound from large ensembles, drum kits, or multi-mic sessions. Fender-designed instrument inputs and professional-grade converters ensure guitars, basses, and all your sources sound natural and dynamic.

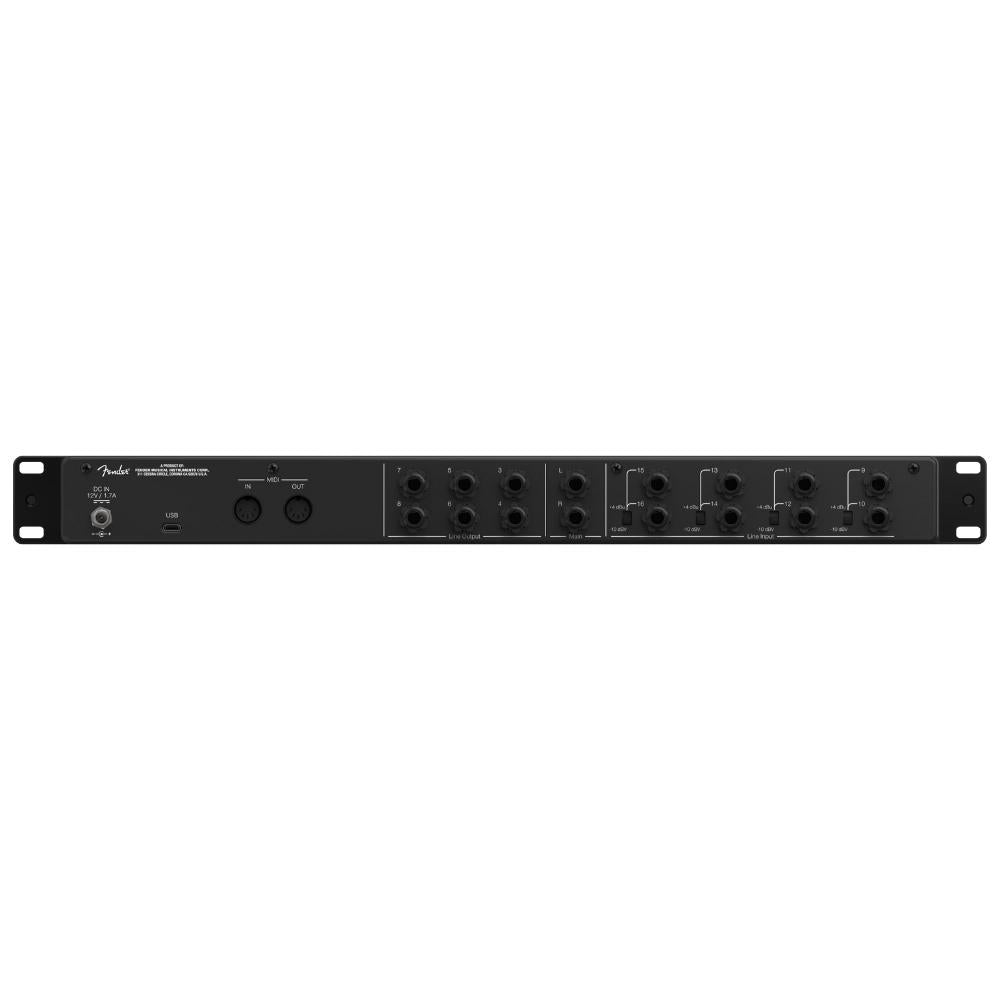

In addition to the six front panel line inputs, the LT 16 features eight rear panel TRS analog line inputs for effortless integration with outboard gear such as external mic preamps, synthesizers, mixers, or other line-level devices — expanding your studio’s sonic palette without complicating your setup.

Fender Quantum LT’s blazing-fast, custom low-latency drivers provide an ultra-responsive recording experience, while balanced TRS outputs and a powerful headphone amp give you versatile monitoring options. LT 16 also unlocks exclusive features: Standalone “Mic Pre Mode” transforms it into an 8-channel mic preamp, DC-coupled outputs bring CV control to your modular synth rig, and 5-pin MIDI I/O ensures seamless hardware integration. A perpetual license for Fender Studio Pro is included, offering a professional DAW with exclusive Mustang and Rumble plug-ins.



Features

  • 16 x 8 USB-C Interface – Ultra-low-latency custom drivers
  • Eight MAX-HD Mic Preamps with 75 dB Gain – Transparent, low-noise recording for large sessions
  • A Total of 14 Line Inputs – for easy connection of mic pres, synths, mixers, and other line-level devices:
    • 6 front panel XLR/TRS (combo jacks 3–8)
    • 8 rear panel TRS inputs with switchable 4 dBu / -10 dBV operation
  • Dual Fender-Designed Instrument Inputs – Optimized for guitars, basses, and other instruments
  • Balanced TRS Outputs & Headphone Monitoring – Professional-quality, flexible monitoring
  • Loopback Audio – Streaming, podcasting, and mix routing
  • Standalone Mixer Mode & Mic Pre Mode – Analog mixing or 8-channel mic preamp operation
  • DC-Coupled Outputs – Integrate modular synths and analog gear
  • 5-Pin MIDI I/O – Hardware integration without external MIDI interface
  • Fender Studio Pro Perpetual Included – Professional DAW with Mustang and Rumble plug-ins
  • Built-in MyFender Access – Quick setup, registration, and support



Microphone Inputs

Connection Type: XLR Female (Combo), Balanced
Frequency Response: 20 Hz to 20 kHz
Dynamic Range: 115 dB
EIN: -128.6 dBu
THD+N: 0.001 %
Gain Range: 75 dB
Maximum Input Level: +18 dBu
Phantom Power: +48 VDC

Line Inputs

Connection Type: 1/4" TRS Female
Frequency Response: 20 Hz to 20 kHz
Dynamic Range: 115 dB (+4 dBu) / 113 dB (-10 dBV)
THD+N: 0.001 % (+4 dBu) / 0.0009 % (-10 dBV)
Maximum Input Level: +18 dBu

Instrument Inputs

Connection Type: 1/4" TS
Frequency Response: 20 Hz to 20 kHz
Dynamic Range: 114 dB
THD+N: 0.003%
Maximum Input Level: +22 dBu

Line Outputs

Connection Type: 1/4" TRS Female
Maximum Output Level: +18 dBu

Main Outputs

Connection Type: 1/4" TRS Female

Headphone Outputs

Connection Type: 1/4" TRS Female
Frequency Response: 20 Hz to 20 kHz
Dynamic Range: 114 dB
THD+N: 0.01 %
Maximum Output Level: 142 mW/Channel (60Ω Load)

MIDI I/O

Connection Type: 5-Pin Female DIN

Power

Voltage: 120V
Voltage Requirements: 100-240 VAC, 50-60 Hz

Digital Audio

Connectivity: USB-C®
Bit Depth: 24 Bit
Dynamic Range: 115 dB
Supported Sample Rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz (kHz)

Measurements

Height: 1.75" (44.45 mm)
Depth: 5" (127 mm)
Width: 19" (483mm)
Weight: 4.8 lbs. (2.2 kg)
