Product Description

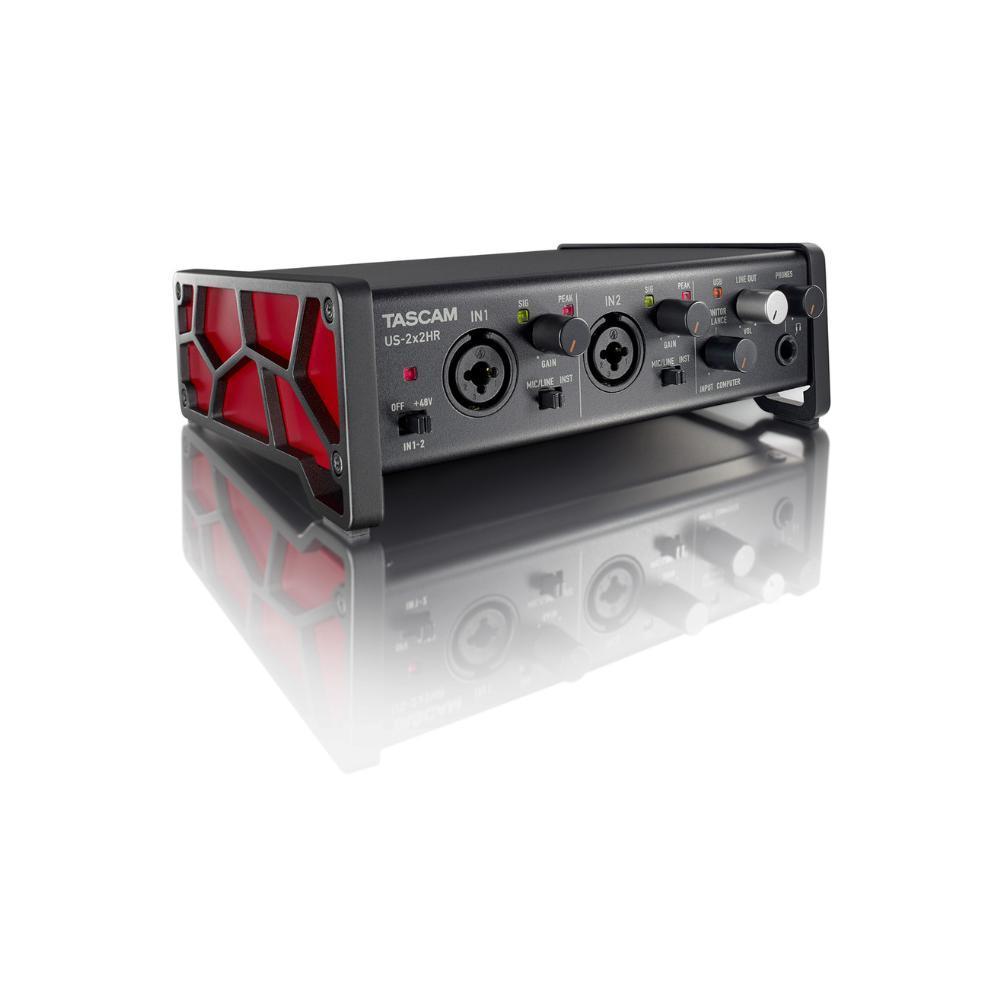

The Tascam US-2X2HR delivers professional-grade audio interface capabilities in a compact form factor. Featuring dual combo jack inputs supporting microphone, line, and guitar signals, this interface handles diverse recording scenarios with ease. Built-in MIDI IN/OUT ports expand creative possibilities for music production and performance. The loopback function and native OBS support make it ideal for podcasters and live streamers seeking reliable, integrated solutions. With 192 kHz audio support and an enhanced circuit design, you'll capture pristine recordings across all frequency ranges. The intuitive control layout combined with included software bundles provides immediate creative potential for both beginners and experienced producers.
Features
- Improved TASCAM driver with selectable buffer size from 4 samples provides low-latency and stability (Windows: TASCAM native driver)
- Supports up to 24-bit/192 kHz audio formats

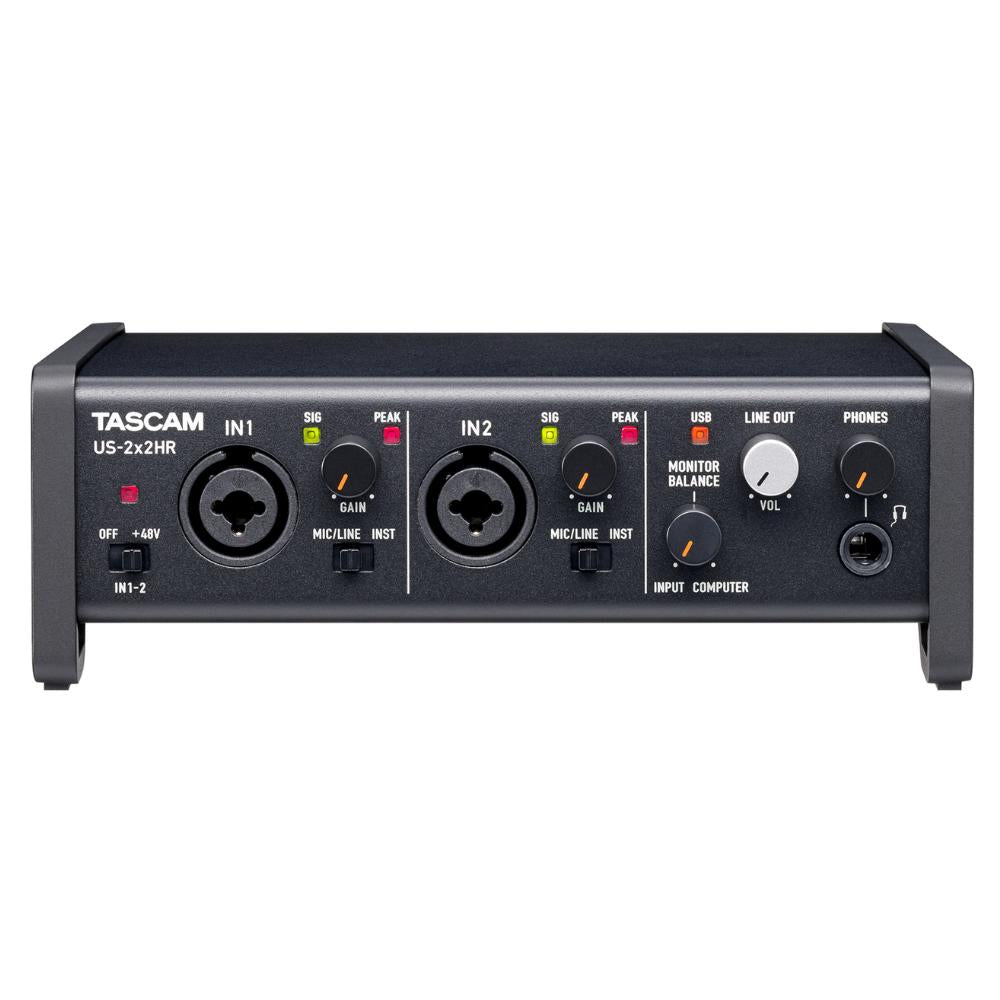

- 2 Combo (XLR) combo inputs equipped with Ultra HDDA mic preamps and +48V phantom power
- 2 Combo (TRS) line inputs with guitar input support
- Equipped with MIDI IN/OUT terminals
- Zero-latency direct monitoring
- Compatible with iPad and other iOS devices
- OBS support
Spec Description
| Sampling frequency | 44.1k/48k/88.2k/96k/176.4k/192k Hz |
| Quantization bit rate | 24bit |
| Analog audio inputs | |
| MIC IN | IN 1 / IN 2 |
| Connector | XLR-3-31(1:GND, 2:HOT, 3:COLD), BALANCED |
| Input impedance | 2.2k ohms |
| Maximum input level (GAIN:MIN) |
+9dBu (2.183Vrms) |
| Gain | 56dB |
| INST IN | IN 1 / IN 2 |
| Connector | 6.3mm(1/4")TS-jack(T:HOT, S:GND), UNBALANCED (When set to "INST" at MIC/LINE INST switch) |
| Input impedance | 1M ohms or more |
| Maximum input level (GAIN:MIN) |
+10dBV(3.162Vrms) |
| Gain | 56dB |
| LINE IN | IN 1 / IN 2 |
| Connector | 6.3mm(1/4")TRS-jack(T：HOT, R：COLD, S：GND), BALANCED (When set to "MIC/LINE" at MIC/LINE INST switch) |
| Input impedance | 10k ohms |
| Maximum input level (GAIN:MIN) |
+20dBu(7.746Vrms) |
| Gain | 56dB |

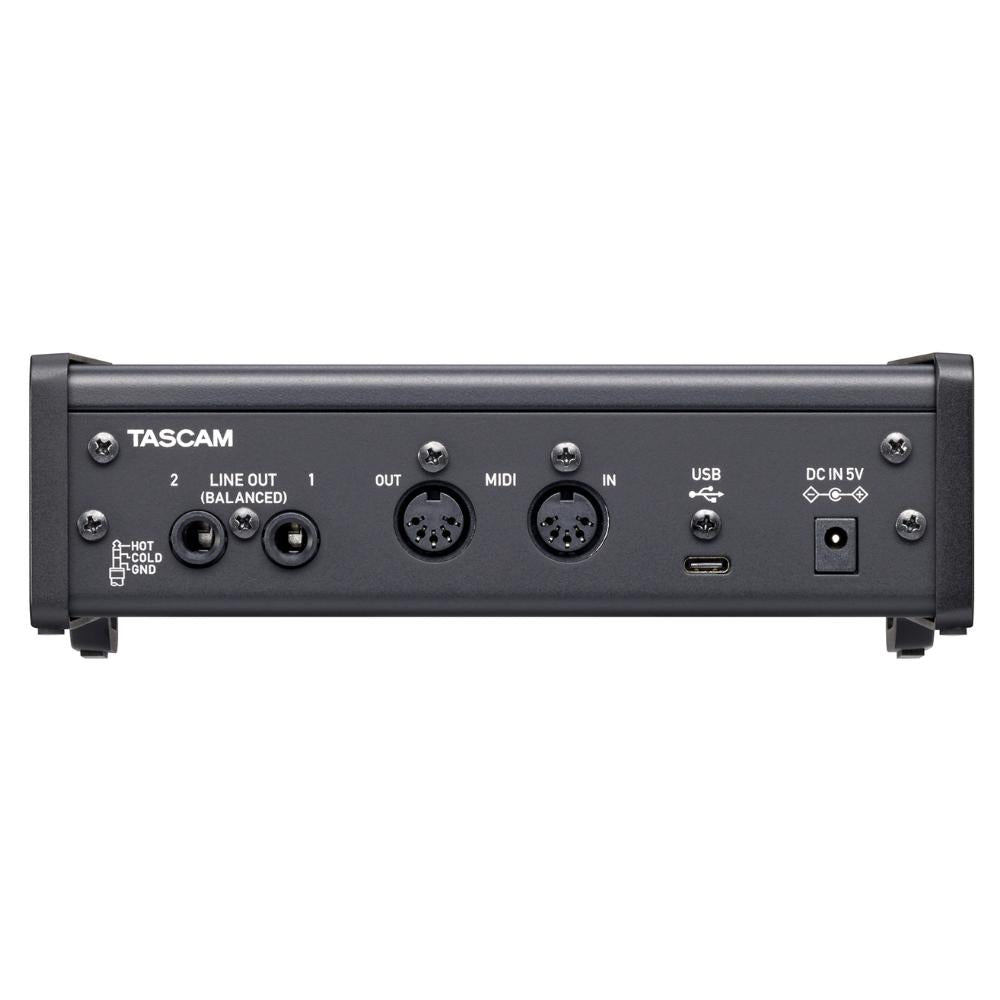

| Analog audio outputs | |
| LINE OUT | 1-2 |
| Connector | 6.3mm(1/4")TRS-jack(T：HOT, R：COLD, S：GND), BALANCED |
| Output impedance | 210 ohms |
| Nominal output level | +4dBu (1.228Vrms) |
| Maximum output level | +20dBu (7.746Vrms) |
| PHONES | |
| Connector | 6.3mm(1/4") stereo phone jack |
| Maximum output level | 18mW+18mW or more (THD+N 0.1% or less, 32ohms loaded) |
| Output impedance | 66ohms |
| Working impedance | 16ohms to 250ohms |
| MIDI IN /OUT | |
| Connector | Din 5-pin |
| Format | Standard MIDI format |
| USB | |
| Connector | USB Type-C |
| Format | USB2.0 HIGH SPEED (480Mbps) |
| Power | |
| When connected PC | USB bus powered AC Adapter (TASCAM PS-P520E, sold separately) |
| When connected iOS/iPadOS | AC Adapter (TASCAM PS-P520E, sold separately) |
| Power consumption | 1.75W |
| Dimensions | 186(W) × 65(H) × 160(D)mm (including protrusions) |
| Weight | 2.43lb (1.1kg) |
| Operating temperature | 5 to 35°C |
| Accessories | USB cable (Type-A to Type-C), Set of DAW software installation guides, Set of DAW plug-in software installation guides, Owner's Manual (including warranty) |
Audio performance
| Mic amp EIN (equivalent input noise) | -128dBu or lower |
| Frequency response | |
| MIC / LINE IN | |
| 44.1k/48k Hz | 20Hz to 20kHz, +0dB/-0.4dB(JEITA) |
| 88.2k/96k Hz | 20Hz to 40kHz, +0dB/-0.4dB(JEITA) |
| LINE OUT | |
| 44.1k/48k Hz | 20Hz to 40kHz, +0.2dB/-0.1dB(JEITA) |
| 88.2k/96k Hz | 20Hz to 40kHz, +0.2dB/-0.4dB(JEITA) |
| THD + N | 0.0013% (MIC IN, 1kHz sine wave, -5dBFS input, GAIN knob at minimum, 20kHz SPCL LPF) |
| 0.0011% (LINE IN, 1kHz sine wave, -5dBFS input, GAIN knob at minimum, 20kHz SPCL LPF) | |
| 0.0012% (LINE OUT, 1kHz sine wave, -4dBFS input, MONITOR knob at maximum, 20kHz SPCL LPF) | |
| S/N ratio | 110dB (MIC IN, GAIN knob at minimum, 20kHz SPCL LPF+A-Weight) |
| 108dB (LINE IN, GAIN knob at minimum, 20kHz SPCL LPF+A-Weight)) | |
| 110dB (LINE OUT, MONITOR knob at maximum, 20kHz SPCL LPF+A-Weight) | |
| Crosstalk | 95dB or more (MIC/LINE IN to LINE OUT, 1kHz sine wave, GAIN knob at minimum) |
Computer system requirements
Windows
| Compatible computers | Windows computer with a USB 2.0 (or higher) port |
| CPU type/speed | 2GHz or faster dual core processor (x86) |
| Memory | 2GB or more |
| Driver | ASIO2.0, WDM, MIDI |
Mac
| Compatible computers | Mac with a USB 2.0 (or higher) port |
| CPU type/speed | 2GHz or faster dual core processor |
| Memory | 2GB or more |
| Driver | Core Audio, Core MIDI |
* Verified with Intel and Apple Silicon (M1 and M2) hardware
iOS/iPadOS divice
| Driver | Core Audio |
