*USED* ART Dual Reamplifier & Direct Box

*USED* No returns, exchanges, or refunds on B-STOCK or USED items.

This ART Dual Reamplifier & Direct Box converts line-level signals to instrument level, ideal for sending DI guitar or bass tracks from your DAW to an amplifier for re-recording. Its dual-channel design allows simultaneous routing of two independent performances or splitting one signal to two outputs for layered amp recordings. The Phase switch inverts the polarity of the second output, providing added flexibility when blending amplifier sounds. This unit is a professional tool for precise re-amping and enhanced tonal control in the studio.

This also features 1/4" TRS and XLR inputs and outputs on each channel, allowing versatile connectivity. Front-panel level controls enable precise gain adjustment directly at the amplifier, facilitating quick matching to the feel of a guitar plugged straight into the amp. This passive unit requires no external power and can also serve as a stereo or dual direct box.

Features

• 2 Independent Channels

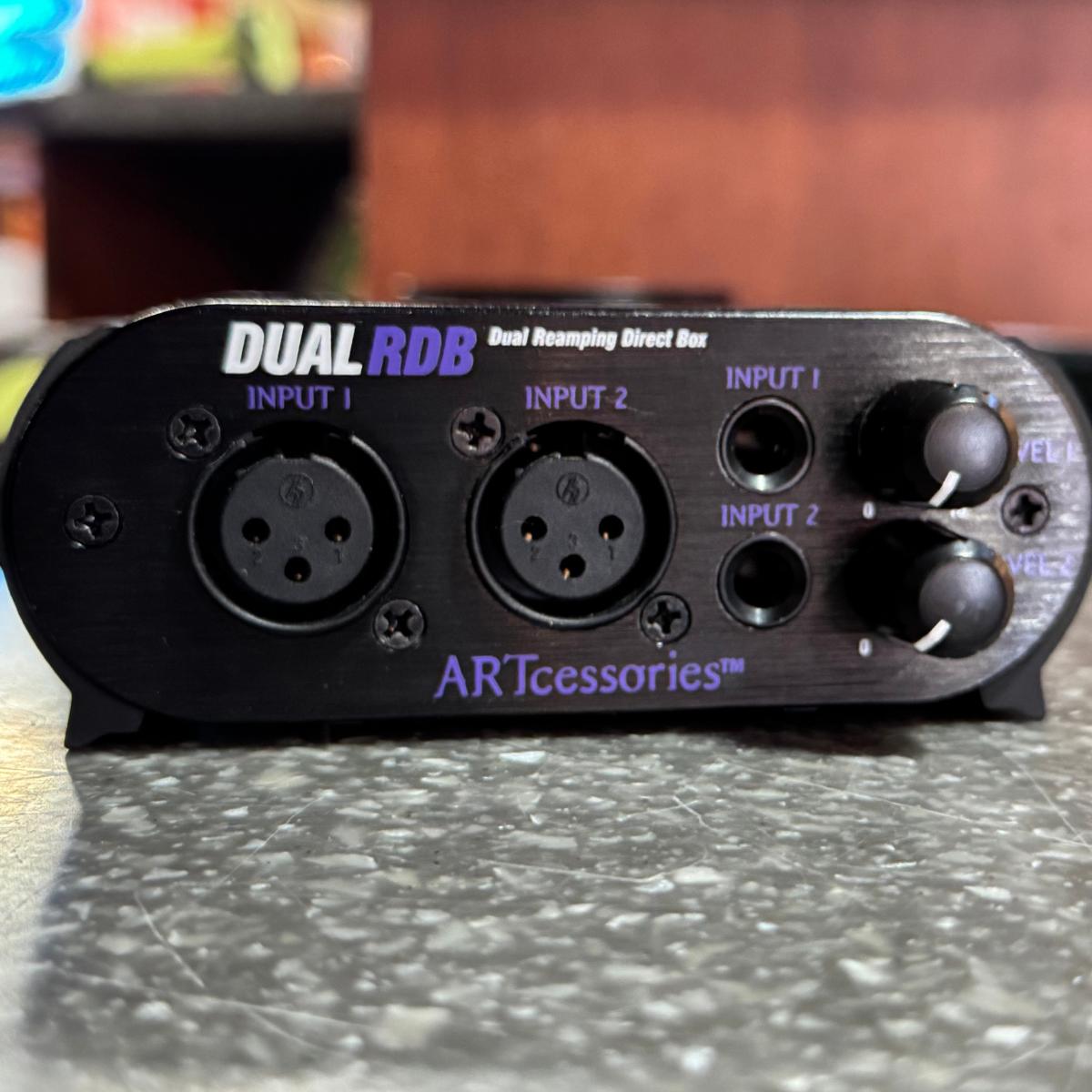

• Dual 1/4" TRS and XLR Balanced Line Inputs with Level Controls

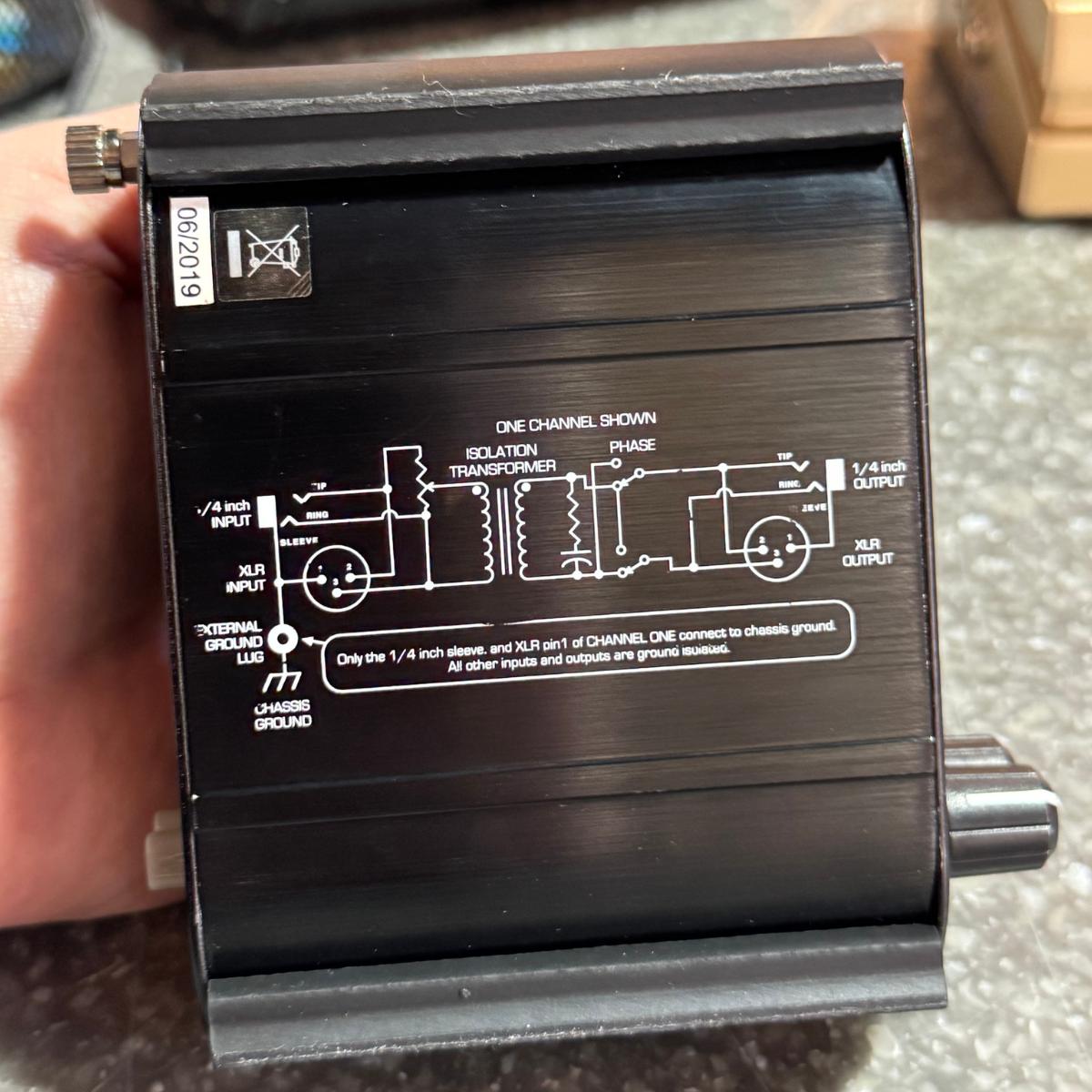

• Transformer-Isolated XLR Balanced Mic Level Outputs
• Transformer-Isolated 1/4" TRS Balanced Instrument Level Outputs

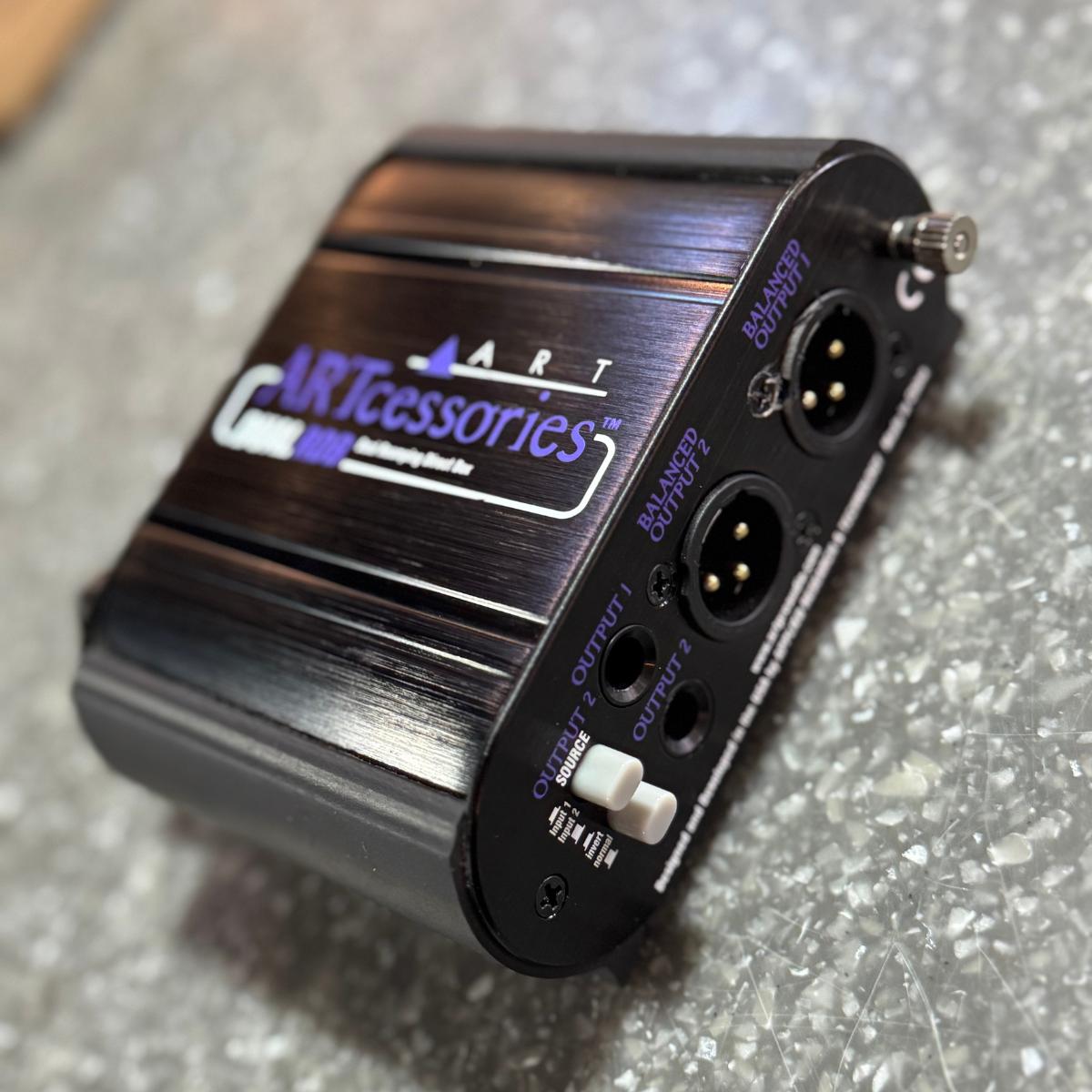

• Channel 2 Output Switchable between Channel 1 or 2 Input
• Switchable Phase Invert on Channel 2
• 20 Hz - 20 kHz Frequency Response
• Passive Design - No Power Required

Specifications

• Active or Passive - Passive
• Inputs - 2x 1/4" TRS - 2x XLR
• Outputs - 2x 1/4" TRS | 2x XLR
• Controls - Level (Per Channel)
• Frequency Response - 20 Hz - 20 kHz +/- 0.5 dB @ +4dBu
• Total Harmonic Distortion - .01% @ 1 kHz, +18 dBu | <.05% @ 100 Hz, +18 dBu
• Channel Separation - >80 dB (Typical)
• Insertion Loss - -20 dB (100 kΩ Load) | -25 dB (600Ω Load)
• Dimensions (HWD) - 1.85" x 4.6" x 3.9" | 4.7 cm x 11.7 cm x 9.9 cm
• Weight - 0.88 lbs / 400 g
