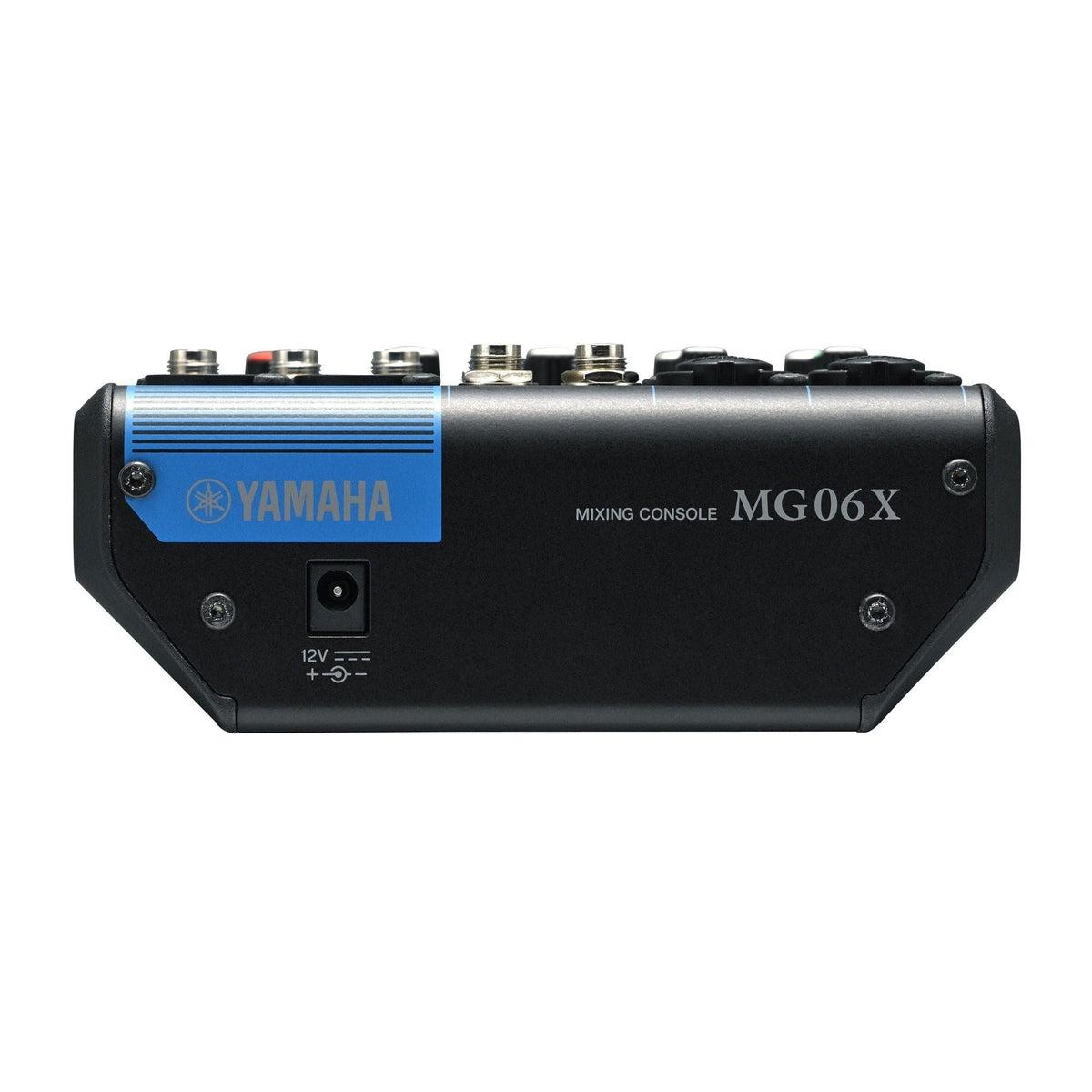

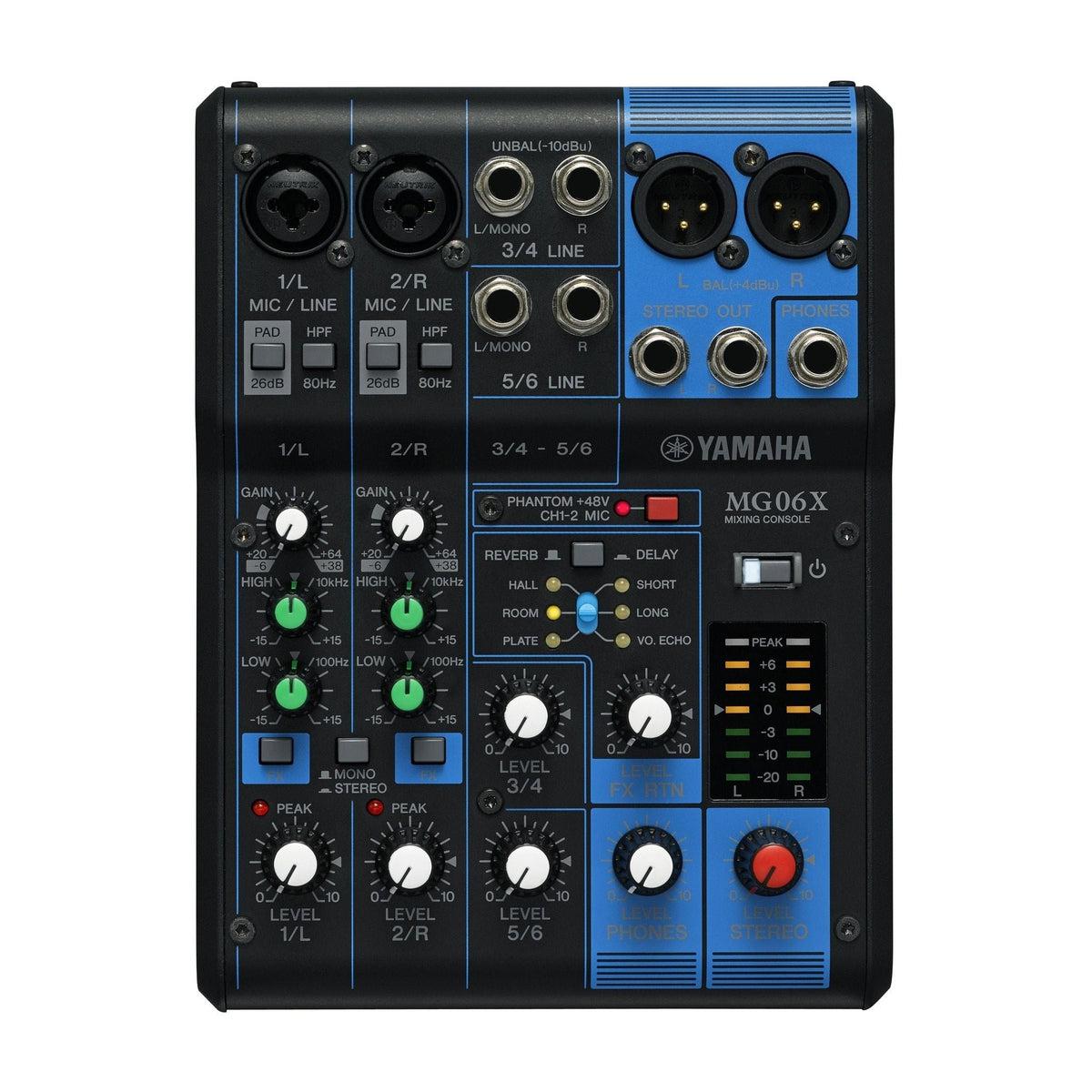

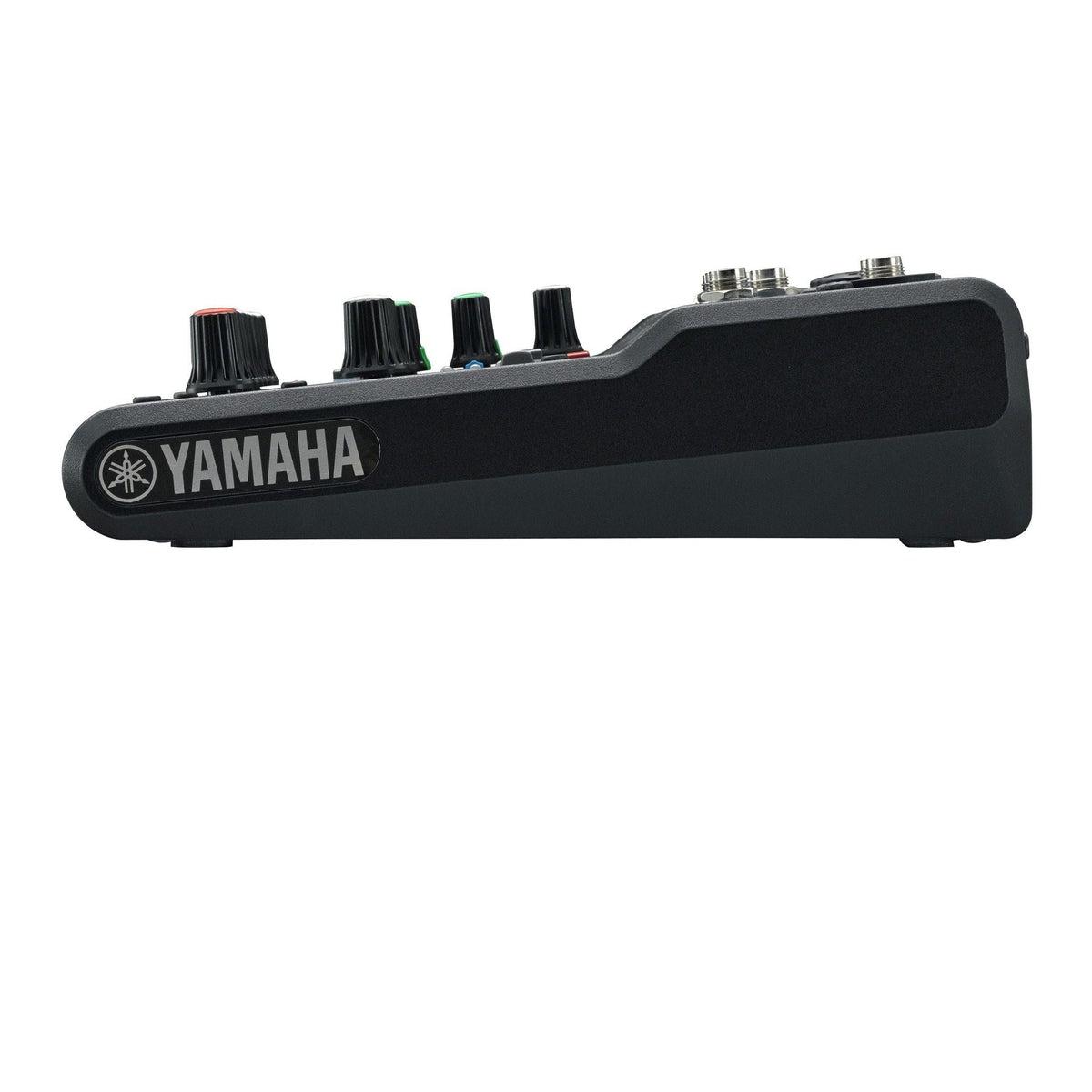

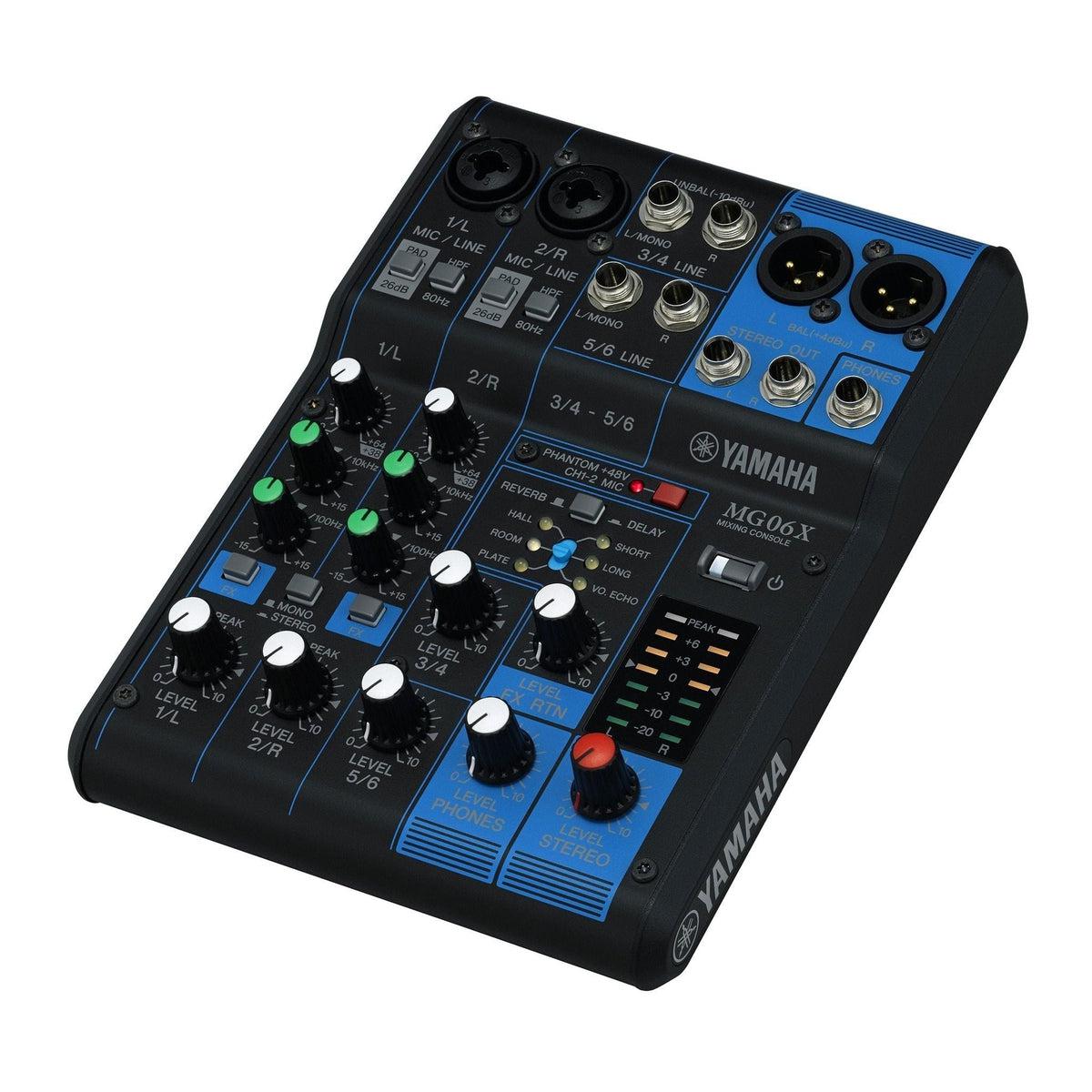

Yamaha MG06X 6-Channel Pro Audio Mixer

SKU: MG06X
Your Price:
$ 149.99
  • This Item Ships Free
Only 5 left! .. people are viewing this, and 3 recently purchased it
Add to wishlist
Checkout Secure
Order in the next to get it by

Why Choose Yandas?

  • Image of Enjoy free shipping on most orders over $39.99

    Free Shipping

    Enjoy free shipping on most orders over $39.99
  • Image of All Instruments undergo our rigorous ProTech inspection before shipping

    ProTech Inspection

    All Instruments undergo our rigorous ProTech inspection before shipping
  • Image of Our Centrally Located warehouse means fast shipping times for you.

    Centrally Located In The USA

    Our Centrally Located warehouse means fast shipping times for you.
  • Image of Join the "Tone Lounge" and earn rewards for future purchases.

    Tone Lounge Rewards

    Join the "Tone Lounge" and earn rewards for future purchases.
  • Image of Don't jive with that new guitar? No problem.

    30-Day Return Policy

    Don't jive with that new guitar? No problem.

For more than a century, Yamaha has been building a legacy of superior craftsmanship and innovation exemplified in all of our products, from an unrivalled catalog of world-class musical instruments to touring-grade professional audio. Now in its third incarnation, the MG Series embodies this pursuit of design excellence, and incorporates some of the same technologies developed for use in high-end professional consoles, including studio-quality preamps, powerful digital processing, and a rugged, reliable construction. With an intuitive, easy-to-use interface, the MG Series boasts an extensive lineup of compact mixing consoles with models ranging from six to twenty channels, suitable for a diverse range of users and applications. For installed, recording, or live music settings, the solid construction and flexible design of these consoles lets you shape your sound with confidence, continually delivering peak performance and a level of sound quality and reliability unrivalled in its class.

Features

  • 6-Channel Mixing Console
  • Max. 2 Mic / 6 Line Inputs (2 mono + 2 stereo)
  • 1 Stereo Bus
  • “D-PRE” mic preamps with an inverted Darlington circuit
  • High-grade effects: SPX with 6 programs
  • XLR balanced outputs
  • PAD switch on mono inputs
  • +48V phantom power
  • Metal chassis
  • Dimensions(W×H×D): 149 mm x 62 mm x 202 mm (5.9"x 2.4"x 7.9")
  • Net Weight: 0.9 kg (1.98 lbs.)

Specs

  • Mixing capability On-board processors SPX algorithm: 6 programs
  • I/O Phantom power +48 V
  • Input Channels Mono[MIC/LINE] 2
  • Stereo[LINE] 2
  • Output Channels STEREO OUT 2
  • PHONES 1
  • Bus Stereo: 1
  • Input Channel Function PAD 26 dB (Mono)
  • HPF 80 Hz, 12 dB/oct (Mono)
  • EQ HIGH (Mono) Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
  • EQ LOW (Mono) Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
  • PEAK LED LED turns on when post EQ signal reaches 3 dB below clipping
  • Level Meter 2 x 7 -segment LED meter [PEAK, +6, +3, 0, -3, -10, -20 dB]
  • Total harmonic distortion 0.01 % @ +8dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +18dBu (1kHz), GAIN knob: Min
  • Frequency response +0.5 dB/-0.5 dB (20 Hz to 20 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
  • Hum & noise level Equivalent input noise -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
  • Residual output noise -102 dBu (STEREO OUT, STEREO LEVEL knob: Min)
  • Crosstalk -88 dB
  • Power requirements PA-130 (DC12 V/1.0 A, Cable length = 1.8 m), 120 V, 60 Hz, MU18 (DC12 V/1.5 A, Cable length = 1.5 m), 100 V-240 V, 50 Hz/60 Hz or equivalent recommended by Yamaha
  • Power consumption 12 W
  • Dimensions W 149 mm (5.9")
  • H 62 mm (2.4")
  • D 202 mm (7.9")
  • Net weight 0.9 kg (1.98 lbs.)
  • Accessories Included Accessory: AC Adaptor, Owner’s Manual, Technical Specifications, Optional Accessory: Mic Stand Adaptor BMS-10A
  • Others Operating Temperature: 0 to +40˚C
Shipping This item ships to
Delivery Estimated between and . Will usually ship within 1 business day.

Description

For more than a century, Yamaha has been building a legacy of superior craftsmanship and innovation exemplified in all of our products, from an unrivalled catalog of world-class musical instruments to touring-grade professional audio. Now in its third incarnation, the MG Series embodies this pursuit of design excellence, and incorporates some of the same technologies developed for use in high-end professional consoles, including studio-quality preamps, powerful digital processing, and a rugged, reliable construction. With an intuitive, easy-to-use interface, the MG Series boasts an extensive lineup of compact mixing consoles with models ranging from six to twenty channels, suitable for a diverse range of users and applications. For installed, recording, or live music settings, the solid construction and flexible design of these consoles lets you shape your sound with confidence, continually delivering peak performance and a level of sound quality and reliability unrivalled in its class.

Features

  • 6-Channel Mixing Console
  • Max. 2 Mic / 6 Line Inputs (2 mono + 2 stereo)
  • 1 Stereo Bus
  • “D-PRE” mic preamps with an inverted Darlington circuit
  • High-grade effects: SPX with 6 programs
  • XLR balanced outputs
  • PAD switch on mono inputs
  • +48V phantom power
  • Metal chassis
  • Dimensions(W×H×D): 149 mm x 62 mm x 202 mm (5.9"x 2.4"x 7.9")
  • Net Weight: 0.9 kg (1.98 lbs.)

Specs

  • Mixing capability On-board processors SPX algorithm: 6 programs
  • I/O Phantom power +48 V
  • Input Channels Mono[MIC/LINE] 2
  • Stereo[LINE] 2
  • Output Channels STEREO OUT 2
  • PHONES 1
  • Bus Stereo: 1
  • Input Channel Function PAD 26 dB (Mono)
  • HPF 80 Hz, 12 dB/oct (Mono)
  • EQ HIGH (Mono) Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
  • EQ LOW (Mono) Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
  • PEAK LED LED turns on when post EQ signal reaches 3 dB below clipping
  • Level Meter 2 x 7 -segment LED meter [PEAK, +6, +3, 0, -3, -10, -20 dB]
  • Total harmonic distortion 0.01 % @ +8dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +18dBu (1kHz), GAIN knob: Min
  • Frequency response +0.5 dB/-0.5 dB (20 Hz to 20 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
  • Hum & noise level Equivalent input noise -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
  • Residual output noise -102 dBu (STEREO OUT, STEREO LEVEL knob: Min)
  • Crosstalk -88 dB
  • Power requirements PA-130 (DC12 V/1.0 A, Cable length = 1.8 m), 120 V, 60 Hz, MU18 (DC12 V/1.5 A, Cable length = 1.5 m), 100 V-240 V, 50 Hz/60 Hz or equivalent recommended by Yamaha
  • Power consumption 12 W
  • Dimensions W 149 mm (5.9")
  • H 62 mm (2.4")
  • D 202 mm (7.9")
  • Net weight 0.9 kg (1.98 lbs.)
  • Accessories Included Accessory: AC Adaptor, Owner’s Manual, Technical Specifications, Optional Accessory: Mic Stand Adaptor BMS-10A
  • Others Operating Temperature: 0 to +40˚C
