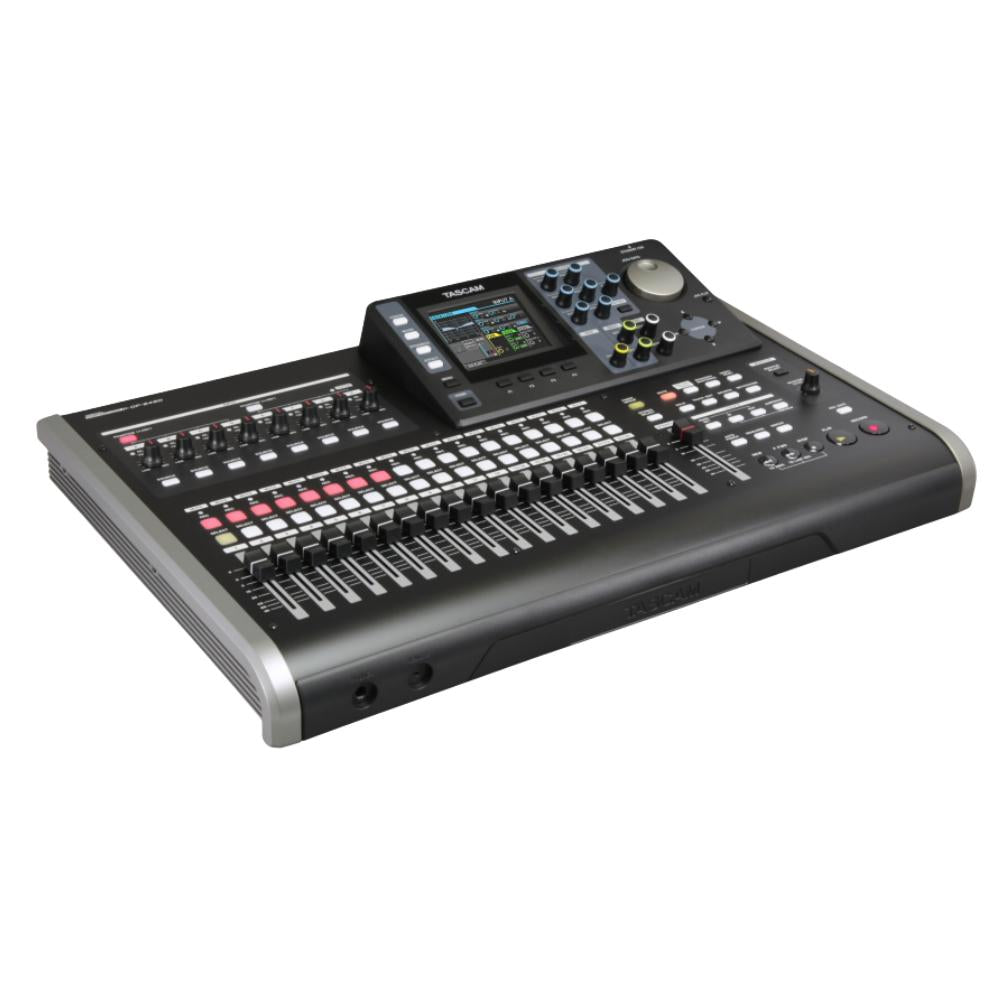

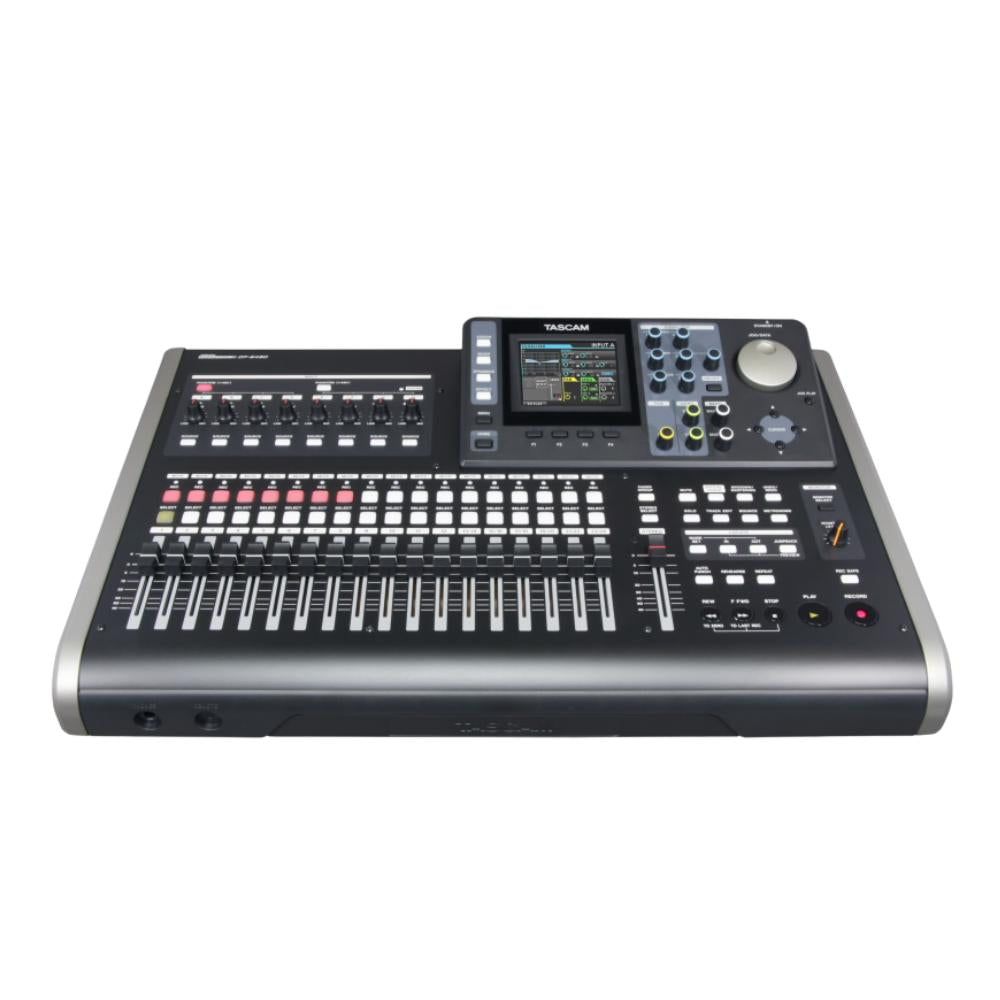

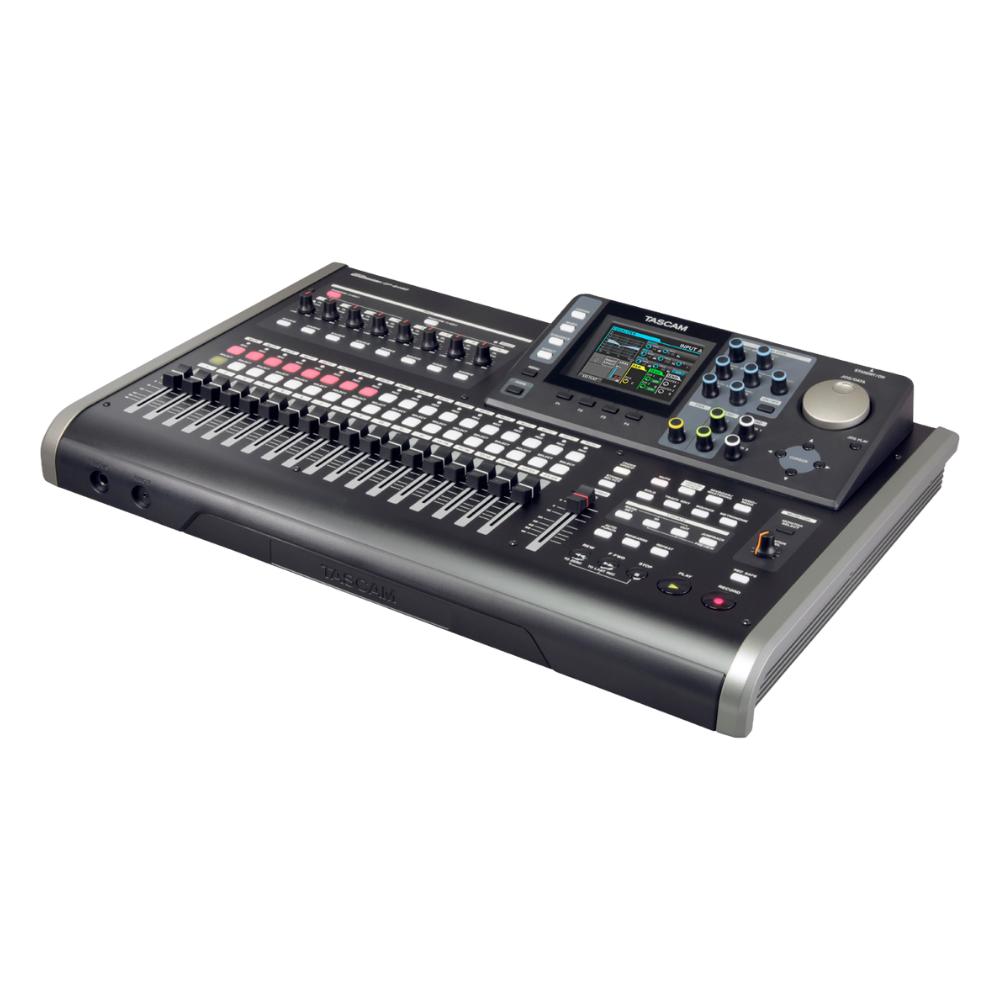

Tascam DP-24SD 24-Track Digital Portastudio

The TASCAM DP-24SD Digital Portastudio records 24 tracks to solid-state drive, with up to eight track simultaneous recording via XLR and 1/4" combo jacks. Input processing includes compression and limiting, as well as guitar amp simulation and multi-effects for use with the instrument-level input. The color display and channel strip knobs make mixing fast and creative, and the included 4GB SD card can be replaced with up to 32GB SDHC media or swapped with other cards between projects for up to 50 hours of music.

SD card and dedicated AC adapter included. RoHS certified.

• Simultaneous 24-track playback, 8 mono tracks + 8 mono/stereo selectable tracks, and simultaneous 8-track recording
• 44.1k or 48 kHz, 16 or 24-bit recording

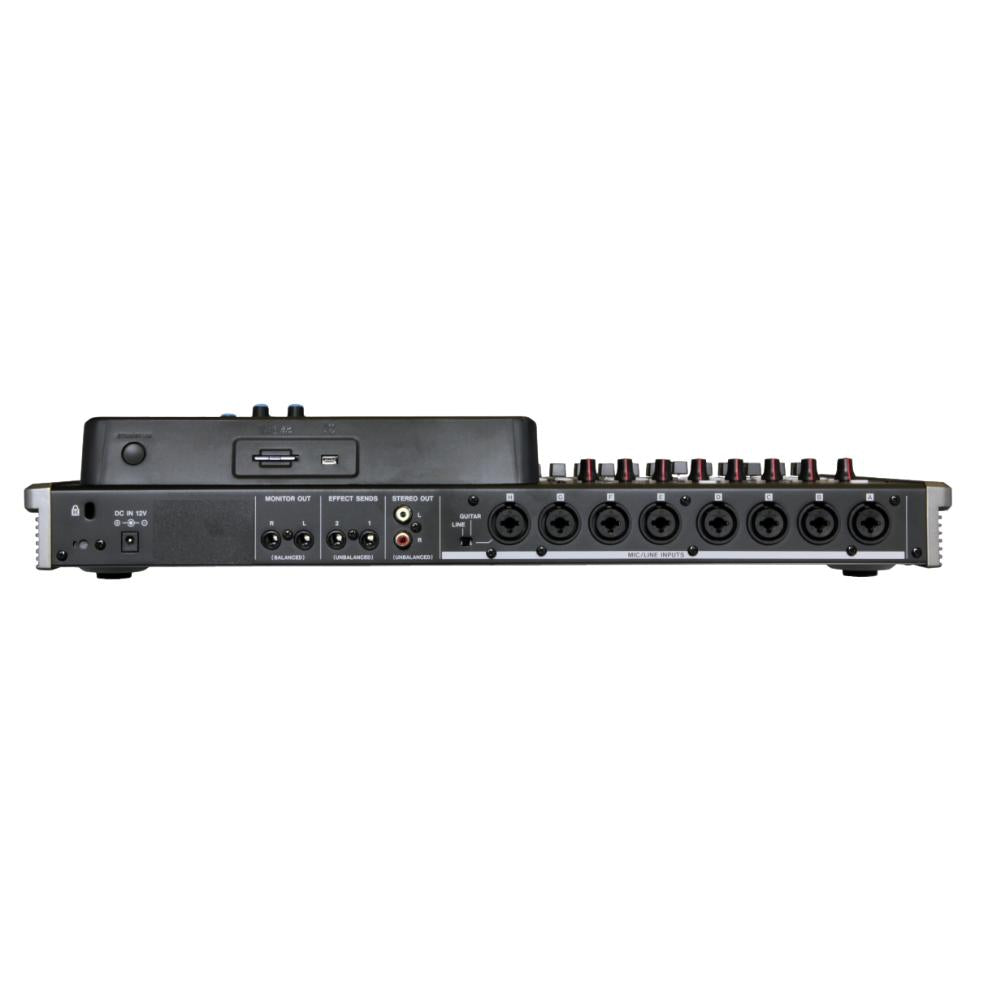

• 8 XLR/TRS combo connectors
• Phantom power supplied on all inputs (INPUT A-D, E-H)
• High-impedance input available (INPUT H)
• Stereo RCA output and 2 effect send outputs (1/4" TS jack)
• 70mW/ch headphone amplifier
• Remote connector for optional RC-3F footswitch
• INPUT A-H and each track have 3-band EQ
• Automatic punch in/out and various edit functions (COPY INSERT, COPY PASTE, MOVE INSERT, MOVE PASTE, OPEN, CUT, SILENCE, CLONE TRACK, CLEAN OUT)
• Undo and Redo with history
• Dynamics effects for input (Limiter, Compressor, Noise Suppressor, Exciter)
• Guitar effects (Amp Simulator, Reverb, Compressor, Chorus, Flanger, Phaser)
• Mix-down effects (Reverb, Delay, Stereo Chorus)
• Mastering Effects (Multi-band Compressor, Equalizer, Dither, Normalize)
• Track bounce function and virtual track (8 virtual tracks per track)
• Locate mark up to 99 per song
• File transferring via USB2.0
• Chromatic tuner, metronome, and 19 faders
• Peak-hold function on LCD level meter and sub-frame editing

Dimensions: 20.2" × 4.1" × 13.4" (514 × 100.4 × 336.9mm)
Weight: 13.67lbs (6.2 kg)
