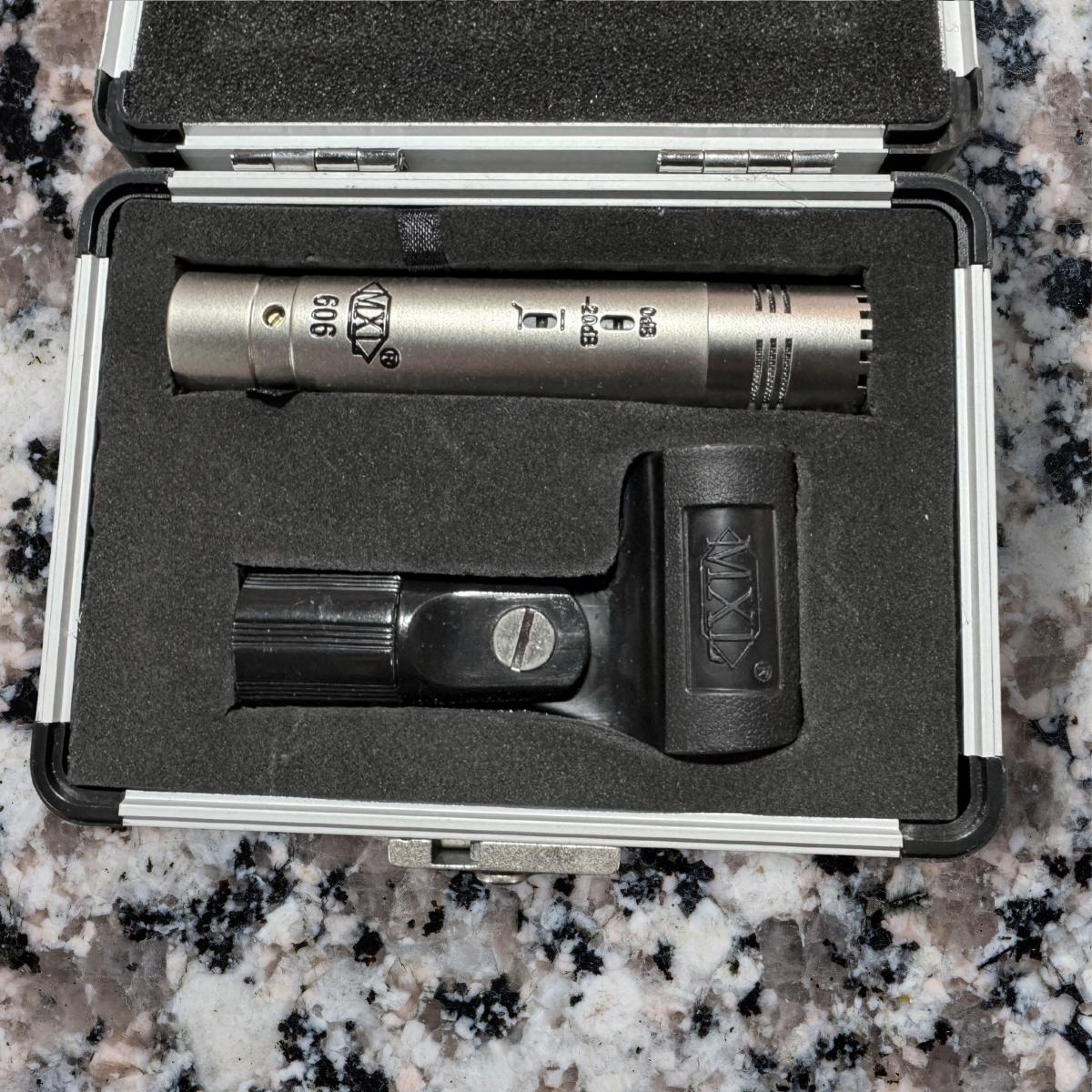

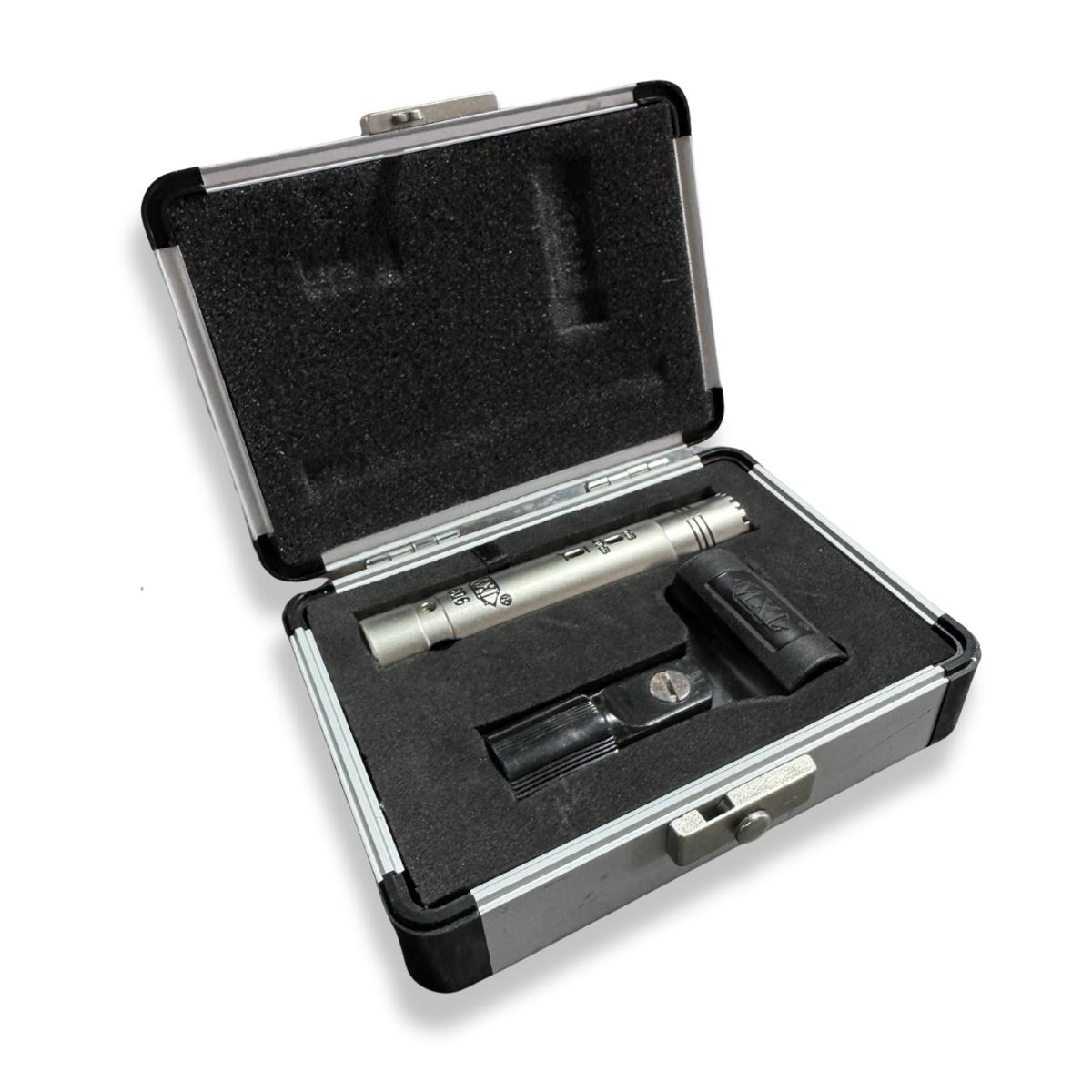

*USED* MXL 606 Small Diaphragm Condenser Instrument Microphone

*USED* No returns, exchanges, or refunds on B-STOCK or USED items.

This MXL 606 Small Diaphragm Condenser Instrument Microphone is designed for precise capture of snare drums, hi-hats, acoustic guitars, pianos, percussion, and stringed instruments. Its transformerless FET circuitry and gold-sputtered diaphragm deliver a clean, clear tone with excellent detail. Equipped with a -20 dB switchable attenuation pad and low-frequency roll-off, it offers versatile control to handle high sound pressure levels and reduce unwanted rumble, making it an expert choice for professional recording environments.

• Small-diaphragm instrument mic

• Bass roll-off and attenuator to fit any recording situation

• Excellent detail in the midrange and at the top end

• Ideal for percussion, acoustic guitars and pianos

• Low profile design works for live performance

SPECIFICATIONS

• Type - Pressure gradient condenser mic
• Diaphragm - Gold-sputtered, 6 micron
• Capsule size - 22mm/.87 in.
• Frequency response - 30Hz – 20kHz
• Polar pattern - Cardioid
• Sensitivity - 15 mV/Pa
• Impedance - 150 ohms
• Equivalent noise - 17 dB (A-weighted IEC 268-4)
• S/N Ratio - 77 dB (Ref. 1 Pa A-weighted)
• Max SPL for .5% THD - 137 dB
• Power requirements - 48V phantom power (+/- 4V)
• Size and weight - 0.25 lbs/113g
