Product Description

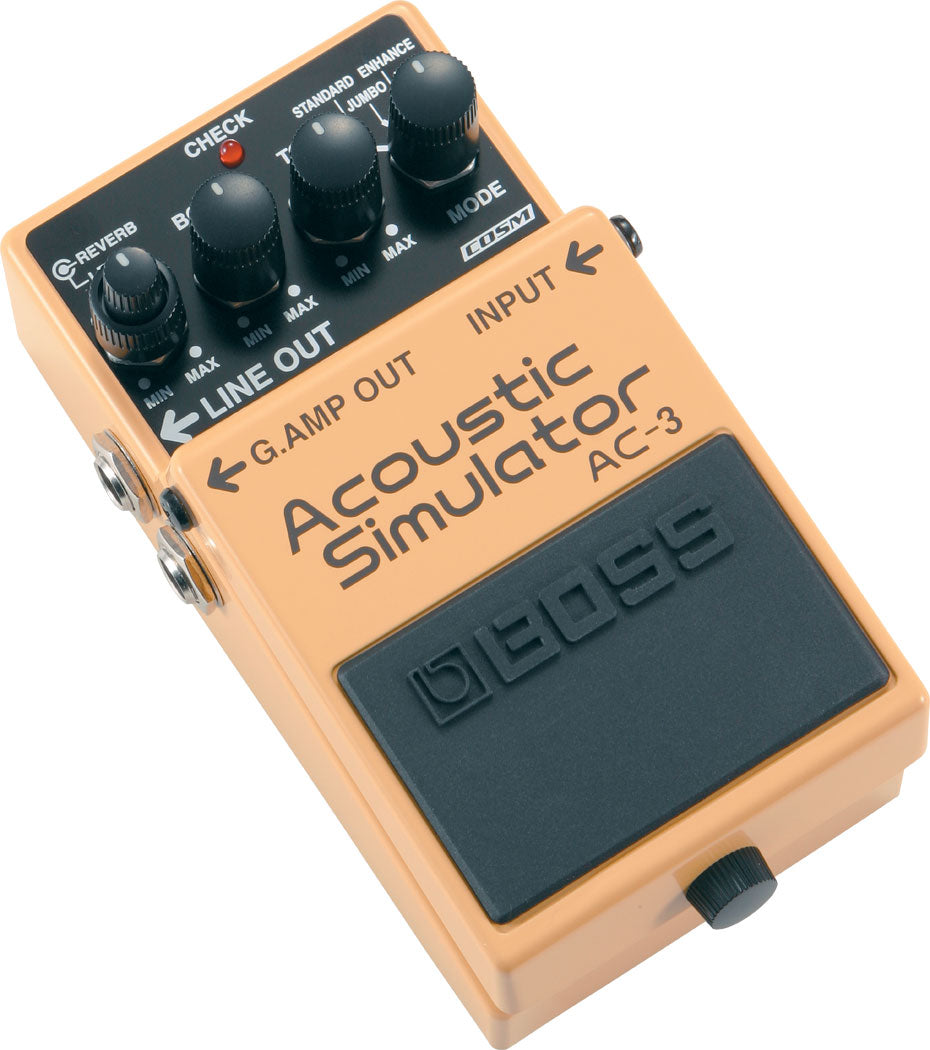

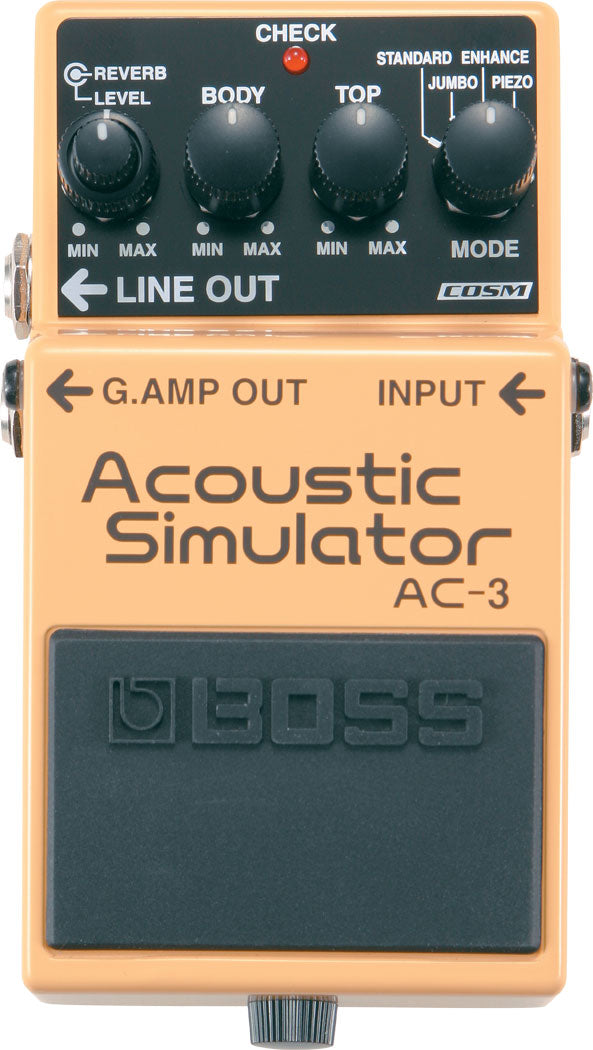

BOSS introduces the AC-3, a compact pedal that brings authentic acoustic guitar tones to any electric. Using proprietary COSM modeling technology, the AC-3 recreates the resonance and character of multiple acoustic guitar styles—perfect for musicians who need versatility without hauling an extra instrument. Whether onstage or in the studio, transform your electric into a convincing acoustic with a single footswitch. Travel light. Sound acoustic.
Specs
- Nominal Input Level
- -20 dBu
- Input Impedance
- 1 M ohm
- Nominal Output Level
- -20 dBu
- Output Impedance
- 1 k ohm
- Recommended Load Impedance
- 10 k ohms or greater
- Bypass
- Buffered bypass
- Controls
- MODE knob
TOP knob
BODY knob
REVERB/LEVEL knob
Pedal switch - Indicator
- CHECK indicator (Used for indication of check battery)
- Connectors
- INPUT jack: 1/4-inch phone type
LINE OUT jack: 1/4-inch phone type
G.AMP OUT(Guitar Amp Out) jack: 1/4-inch phone type
DC IN jack - Power Supply
- Alkaline battery (9 V, 6LR61)
AC adaptor (PSA series: sold separately) - Current Draw
- 70 mA
- Expected battery life under continuous use
- Alkaline: Approx. 3.5 hours
*These figures will vary depending on the actual conditions of use. - Accessories
- Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Alkaline battery (9 V, 6LR61) - Options (sold separately)
- AC adaptor: PSA series
