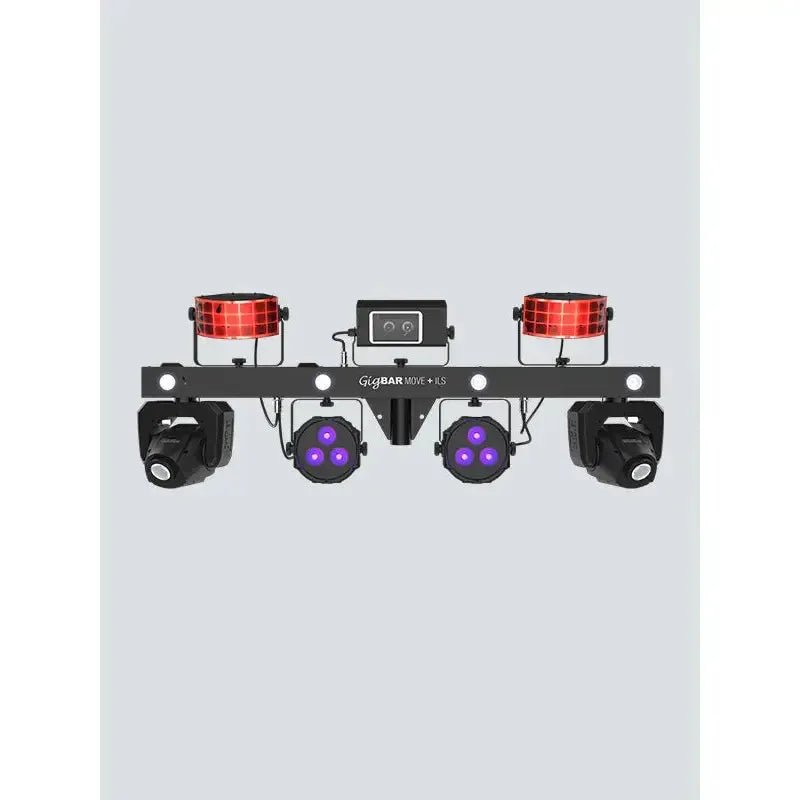

Chauvet DJ GigBAR Move + ILS 5-in-1 Multi-Effect LED Lighting System

The future of easy lighting synchronization is here with GigBAR Move + ILS. GigBAR Move + ILS can control any ILS-enabled fixture, wired or wirelessly. This is a 5-in-1 lighting system that includes moving heads, derbies, washes, a laser and strobe effect pre-mounted on a single bar. Easy navigation and access to all the powerful 32-watt moving head functions can be accessed directly from the full-color LCD display and Totem Mode keeps the moving heads focused on the dance floor. Built-in UV LEDs illuminate florescent objects for dazzling blacklight effects.

GigBAR Move + ILS gives you individual control of each effect to ensure your show looks the way you need it to, but gone is the need to aim a remote directly at the unit! The included RF remote triggers built-in shows without needing line of sight operation. Other easy control options include stand-alone mode, DMX, or wireless footswitch.

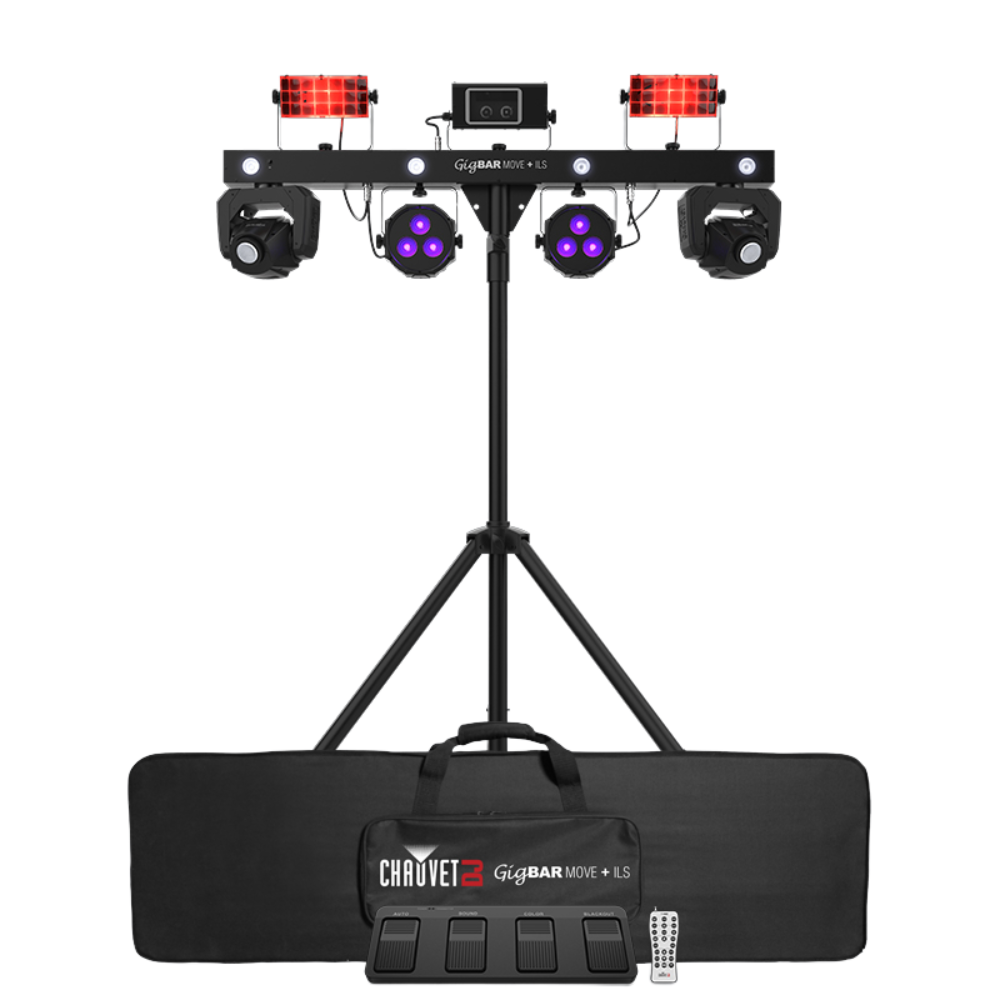

The GigBAR Move + ILS package includes a tripod, wireless footswitch, RF remote and FREE carry bags to ensure quick setup.

• 5-in-1 lighting system that includes moving heads, derbies, washes, a laser and strobe effect pre-mounted on a single bar
• ILS compatibility for use in the ILS ecosystem (ILS) is a complete lighting ecosystem technology that provides an advanced, coordinated light show across multiple fixture types
• Control any ILS-enabled fixture wirelessly with built-in D-Fi transceiver
• Use the included RF remote to trigger the built-in shows without needing line of sight
• Powerful moving heads with separate color and gobo wheels allow for creative programming
• Totem Mode keeps the moving heads focused on the dance floor
• Easy navigation and access to all moving head functions directly from the full-color LCD display
• Safely mounts to truss or ceilings using the 3/8 in threaded inserts

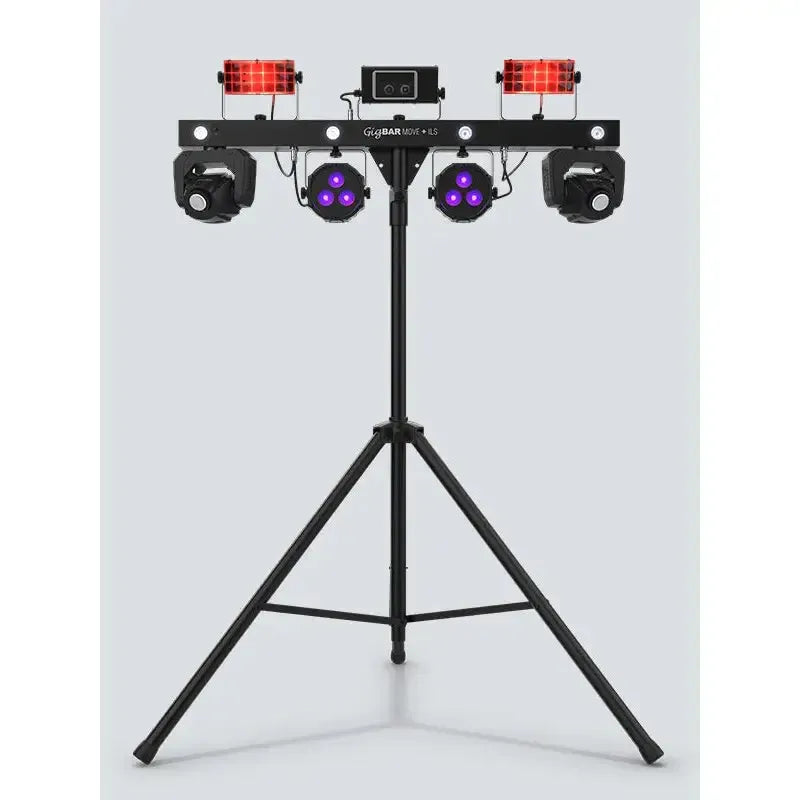

• System includes a tripod, wireless footswitch, RF remote and FREE carry bags to ensure quick setup
• Built-in UV LEDs illuminate florescent objects for dazzling blacklight effects
• Individual control of each effect ensures your show looks the way you need it to
• Easy control via stand-alone, DMX, wireless RF remote or wireless footswitch

SPECIFICATIONS

DMX Channels: 3, 29, or 51DMX
Connectors: 3-pin XLR
Pan and Tilt: 540°/180°
Colors: (moving head): 9 + open, split colors, continuous scroll at variable speeds
Gobos: (moving head): 9 + open, continuous scroll at variable speeds
Light Source: (pars) 3 LEDs (hex color RGBAW+UV) 6W (2A), 50,000 hours life expectancy -- (strobe) 4 LEDs (cool white) 5W (1.2A), 50,000 hours life expectancy -- (derby) 8 LEDs (2 red, 2 green, 2 blue, 2 white) 6.5 W (2A), 50,000 hours life expectancy -- (moving head) 1 LED (cool white) 32 W, (3A), 50,000 hours life expectancy --
(Laser) 638 nm/30mW (red) laser diode, 520 nm/20 mW (green) laser diode, 450 nm/ 50 mW (blue) laser diode
Strobe Rate: 0 to 30 Hz
Beam Angle: (moving head) 17° -- (pars) 22° -- (strobe) 30°
Field Angle: (pars) 33° -- (strobe) 62°
Coverage Angle: (derby) 131° -- (laser) 93°
Illuminance: (pars) 1,205 lux @ 2m (per par) -- (moving head) 5,140 lux @ 2m (per head) -- (strobe) 130 lux @ 2m
Power Linking: 7 units @ 120V; 12 units @ 230V
Input Voltage: 100 to 240VAC, 50/60Hz (auto-ranging)
Power and Current: 250 W, 3A @ 120V, 60 Hz -- 248W, 1.8A @ 230V, 50Hz
Footswitch Operating Frequency: 433MHz
Footswitch Max Unobstructed Distance: 100ft (30.5m)
Max Unobstructed Distance (D-Fi): 600ft (183m)
Footswitch Battery: 9 V alkaline
Included Controllers: RF remote, wireless footswitch
Optional Controllers: RFRF Remote Battery: 23A, 12V alkaline

Weight: (bar only) 31lbs (14kg)
Size: 43 x 5.7 x 17.7in (1100 x 144 x 449mm)
Fits Tripod Size: 1.5in (37.4mm)
Stand Height: 4.8ft to 8.3ft (1.5 to 2.5m)
Tripod Thickness: 1.37in (35mm)
Cable Length: 10ft (3m)
