*USED* No returns, exchanges, or refunds on B-STOCK or USED items.

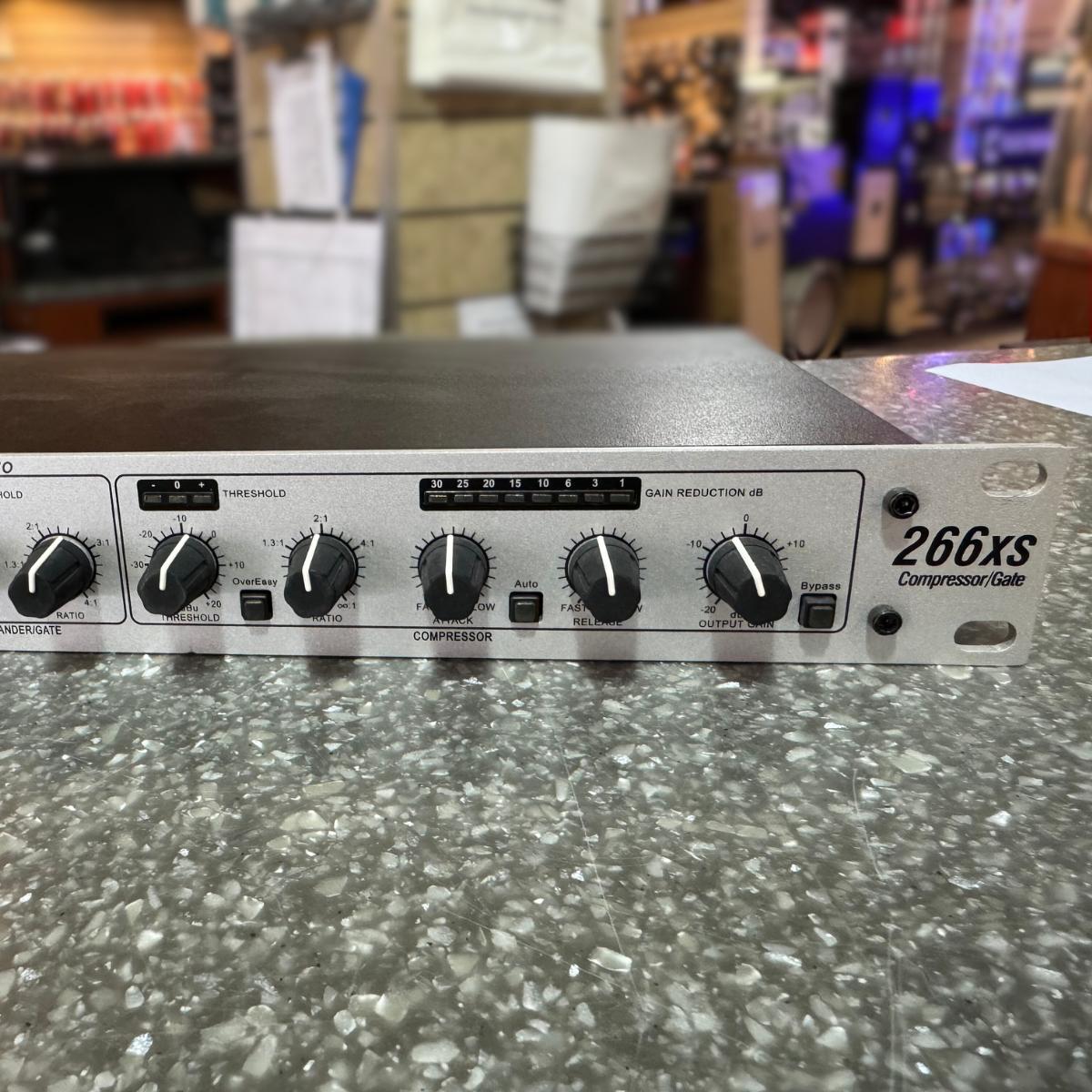

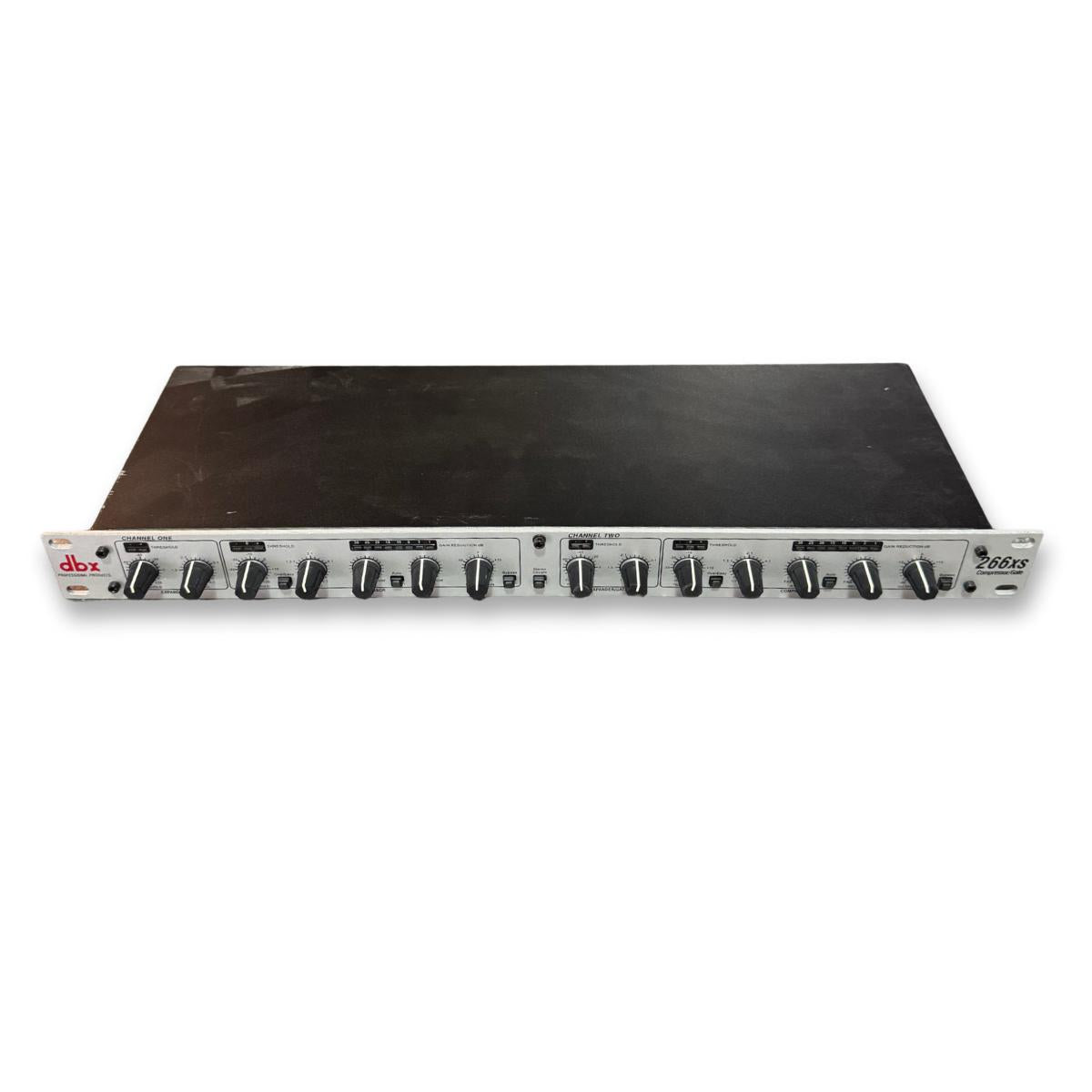

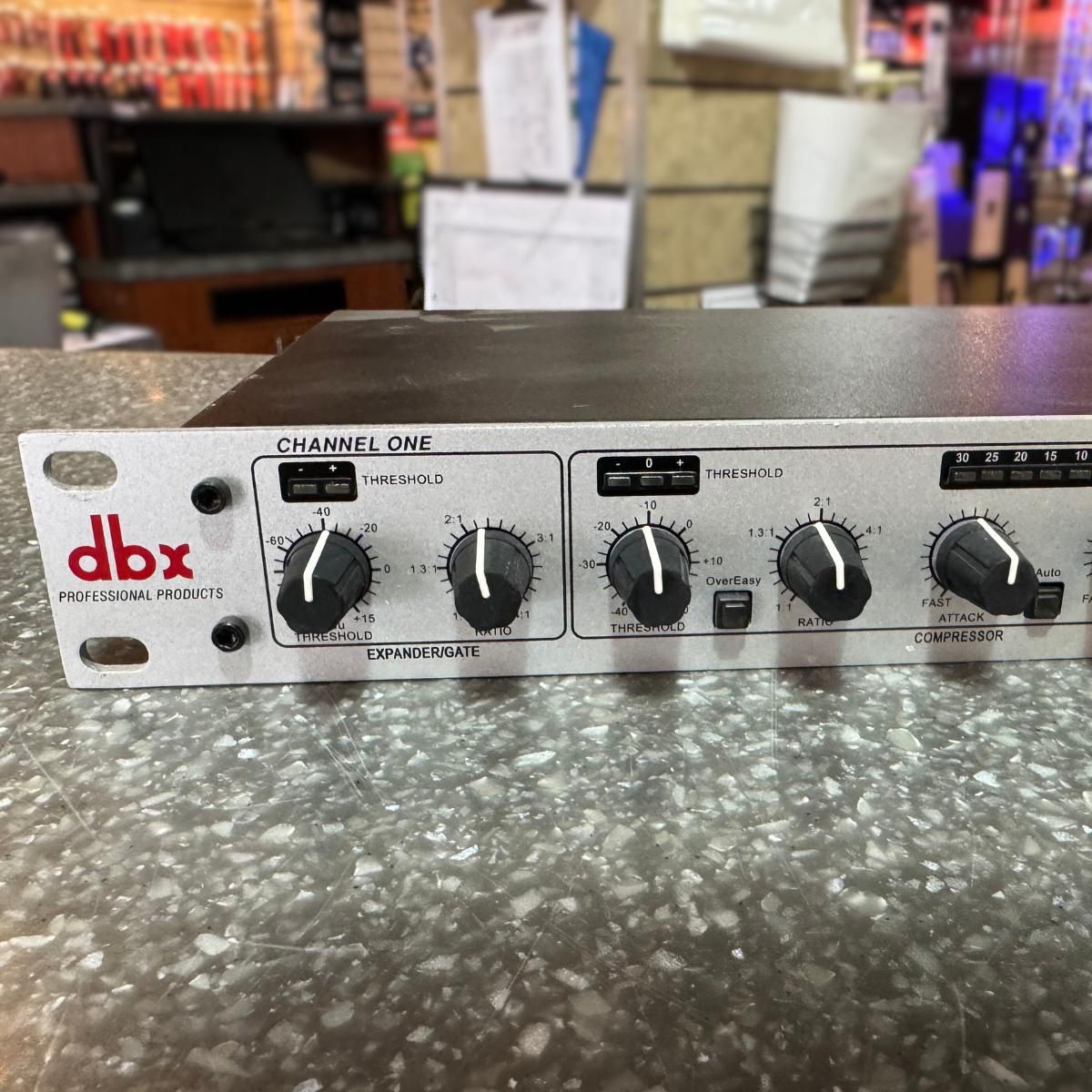

This DBX 266xs Dynamics Processor offers precise control over your audio dynamics, ideal for both live and studio settings. This compressor/gate smooths out uneven levels, enhances guitar sustain, and thickens drum sounds, delivering a more polished mix. It also effectively brings vocals forward, improving clarity and presence within your soundstage.
- Error proof operation to smooth uneven levels, add sustain to guitars, fatten drums or tighten up mixes
- New gate timing algorithms ensure the smoothest release characteristics
- Program-adaptive expander/gates
- Great sounding dynamics control for any type of program material
- Separate precision LED displays for gain reduction, compression threshold and gate threshold allow quick, accurate setup
- Stereo or dual-mono operation
- Balanced inputs and outputs on 1/4" TRS and XLR connectors
- Side Chain insert
- Classic DBX "Auto" mode
Specifications
- Input Connectors - 1/4" TRS and female XLR (pin 2 hot)
- Input Type - Electronically balanced/unbalanced, RF filtered
- Input Impedance - 40kΩ balanced/unbalanced
- Max Input - >+22dBu Balanced or Unbalanced
- Output Connectors - 1/4" TRS, male XLR (pin 2 hot)
- Output Type - Impedance-balanced/unbalanced, RF filtered
- Output Impedance - +4dBu: 100Ω balanced, 50Ω unbalanced; -10dBu: 1kΩ balanced, 500Ω unbalanced
- Max Output - >+21dBu balanced/unbalanced into 2kΩ or greater; >+18dBm balanced/unbalanced (into 600Ω)
- Sidechain - 1/4" TRS Phone, Normalled: Ring = Output (send); tip = Input (return)
- Sidechain Impedance - Tip = >10kΩ (Input), Ring = 2kΩ (Output)
- Sidechain Max Input Level - Tip = >+22dBu (Input)
- Sidechain Max Output Level - Ring = >+20dBu (Output)
- Compressor Threshold Range - -40dBu to +20dBu
- Compressor Threshold Characteristic - Selectable OverEasy® or hard knee
- Compressor Ratio - 1:1 to Infinity:1
- Compressor Attack Time - Scalable Program-Dependent AutoDynamic™
- Compressor Release Time - Scalable Program-Dependent AutoDynamic™
- Expander/Gate Threshold Range - -60dBu to +15dBu
- Expander/Gate Ratio - 1:1 to 4:1
- Expander/Gate Attack Time - <100µs
- Expander/Gate Release Time - Program-dependent
- Bandwidth - 0.35Hz - 90kHz, +0/-3dB
- Frequency Response - Flat: 20Hz-20kHz, +0, -0.5dB
- Noise - <-93dBu unweighted (22kHz measurement bandwidth)
- THD+Noise - Typically <0.2%; Any Amount of Compression @1kHz
- IMD - Typically <0.2% SMPTE
- Dynamic Range - >114 dB, unweighted
- Interchannel Crosstalk - <-95dB, 20Hz to 20kHz
- CMRR - >40dB, typically >55dB at 1kHz
- Stereo Coupling - True RMS Power Summing™
- Power Consumption - 15 Watts Maximum
- Operating Voltage - 100VAC 50/60Hz; 120VAC 60Hz; 230VAC 50/60Hz
- Operating Temperature - 0°C to 45°C (32°F to 113°F)
- Dimensions - 1.75" x 5.75" x 19" (4.45 cm x 14.6 cm x 48.26 cm )
- Unit Weight - 4.84 lbs (2.19 kg)
