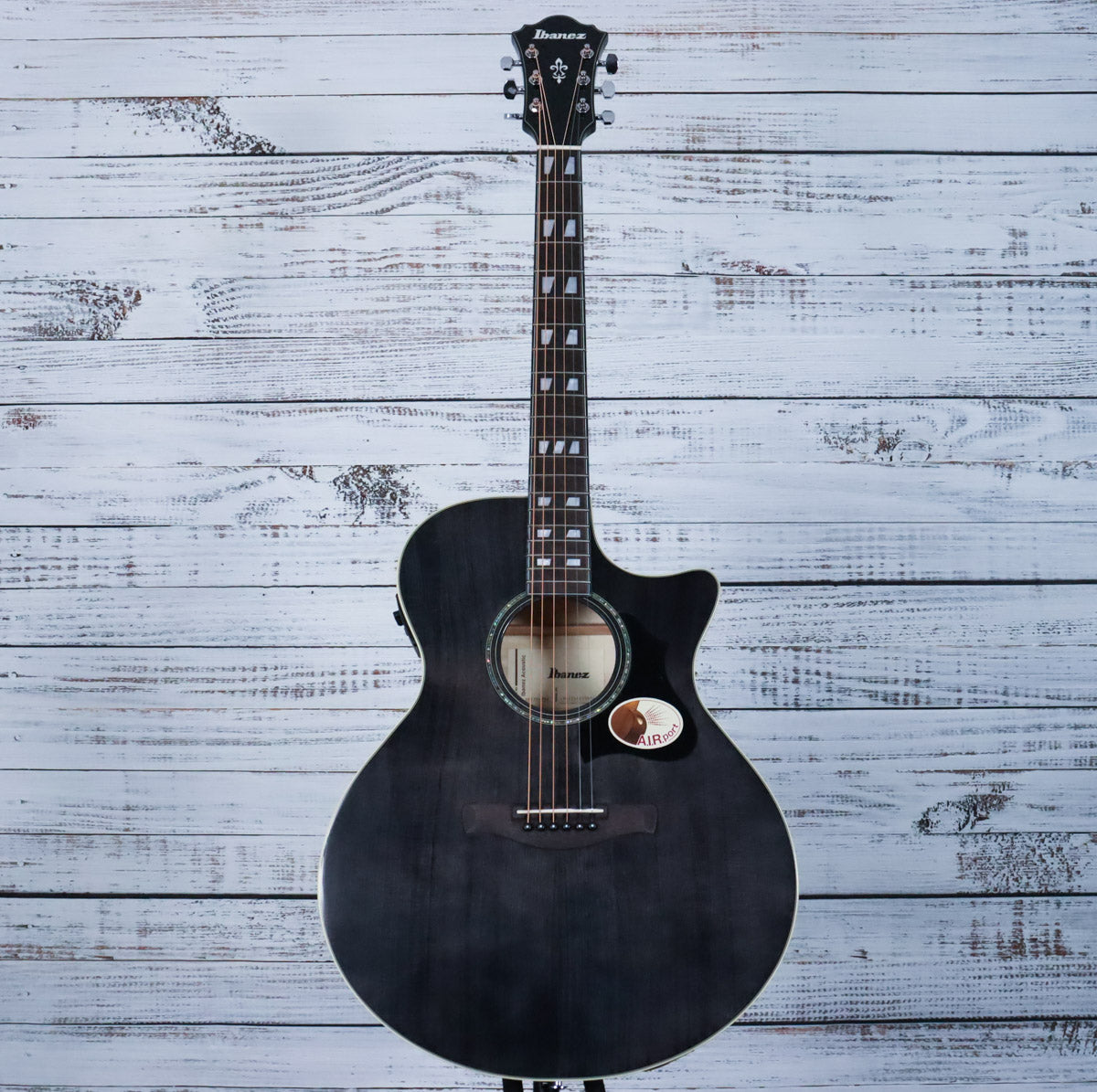

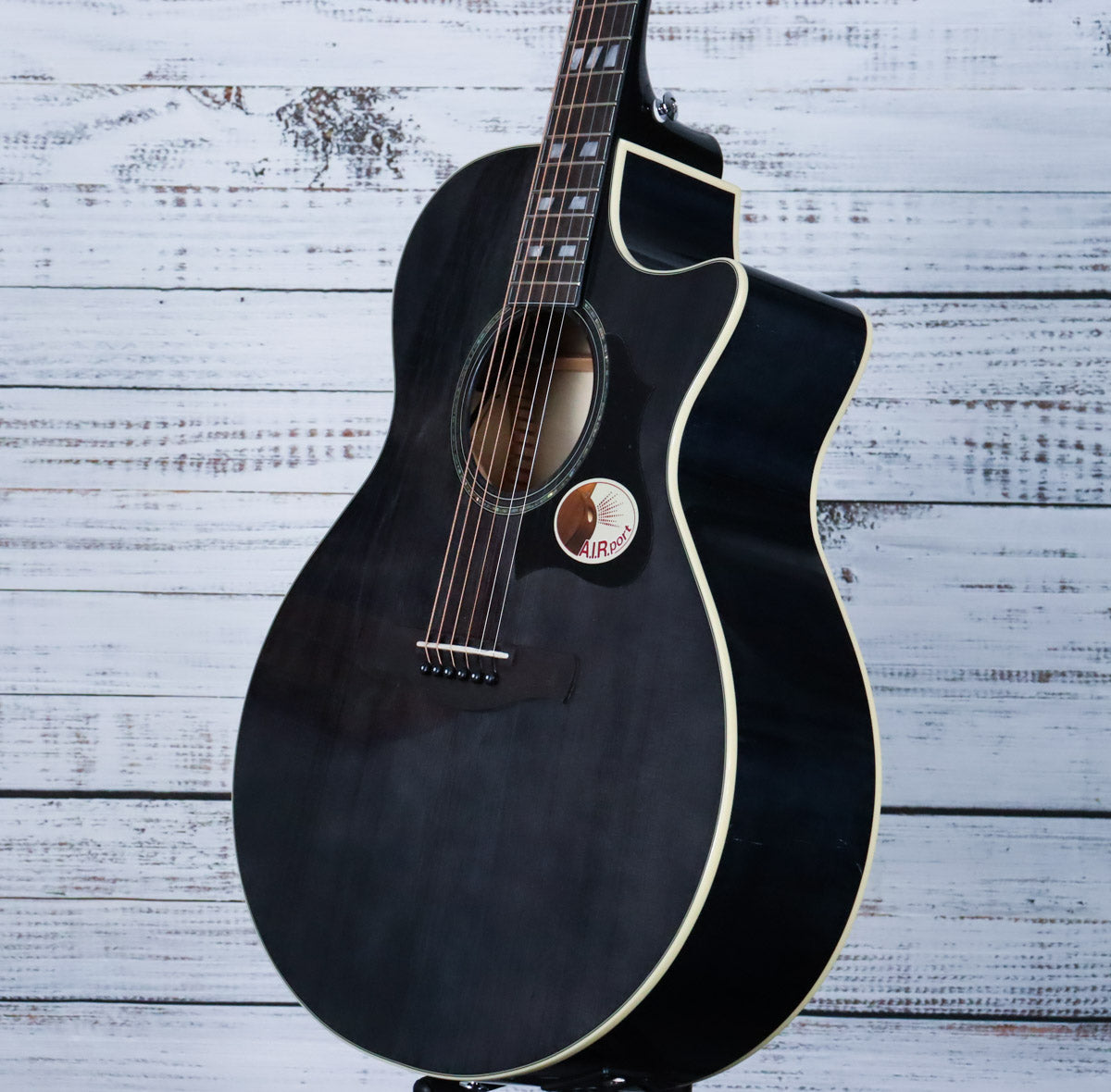

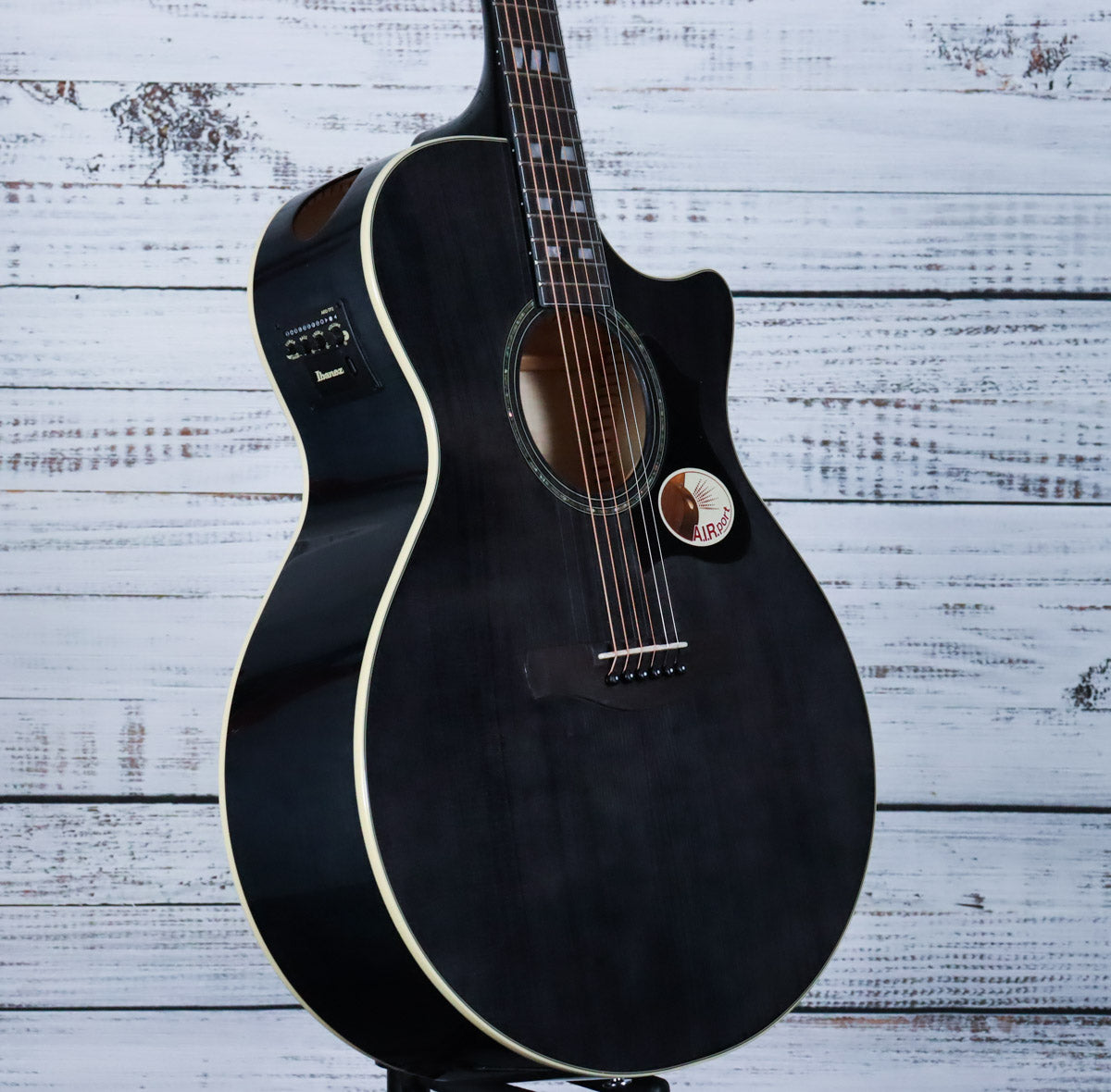

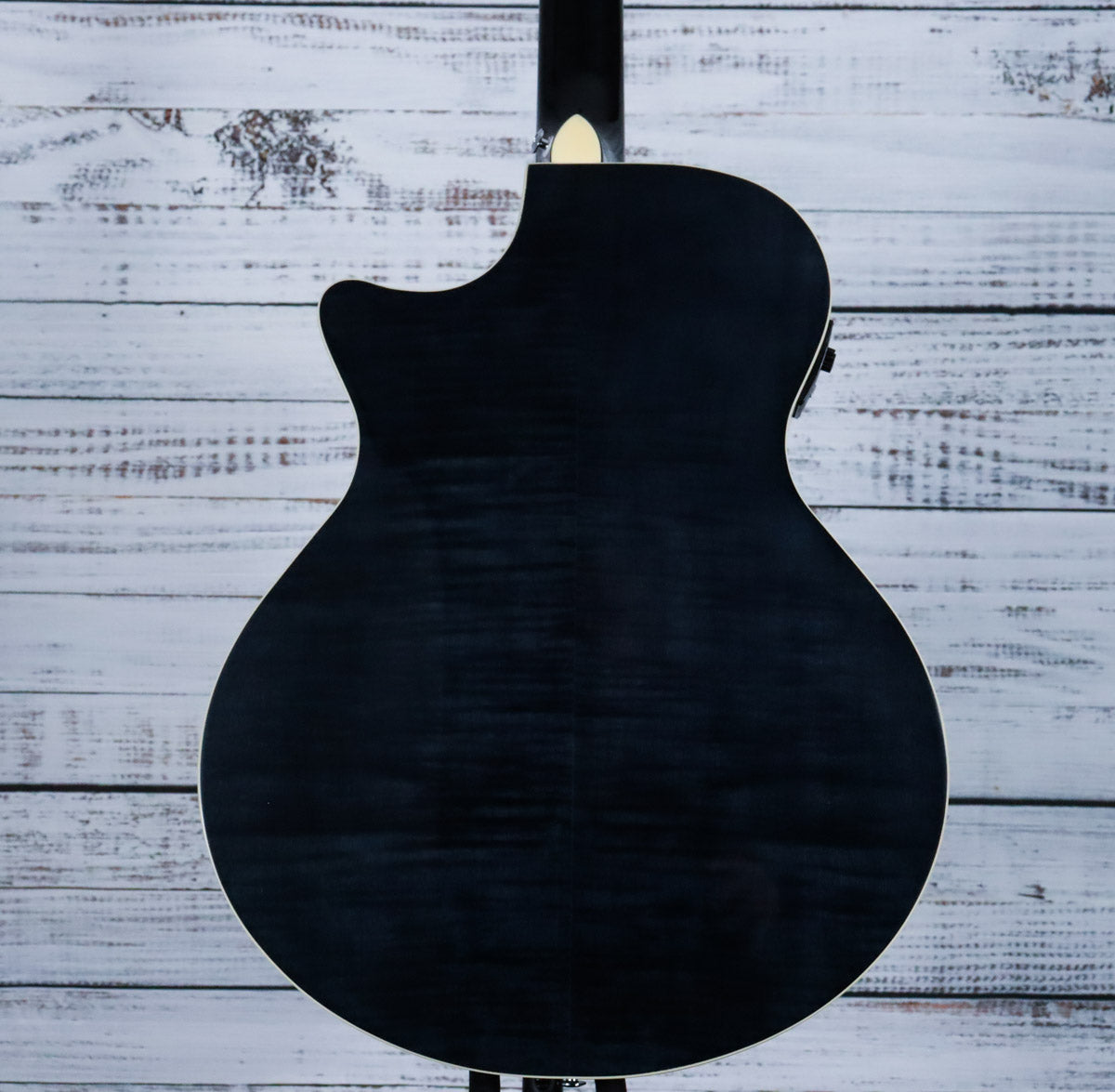

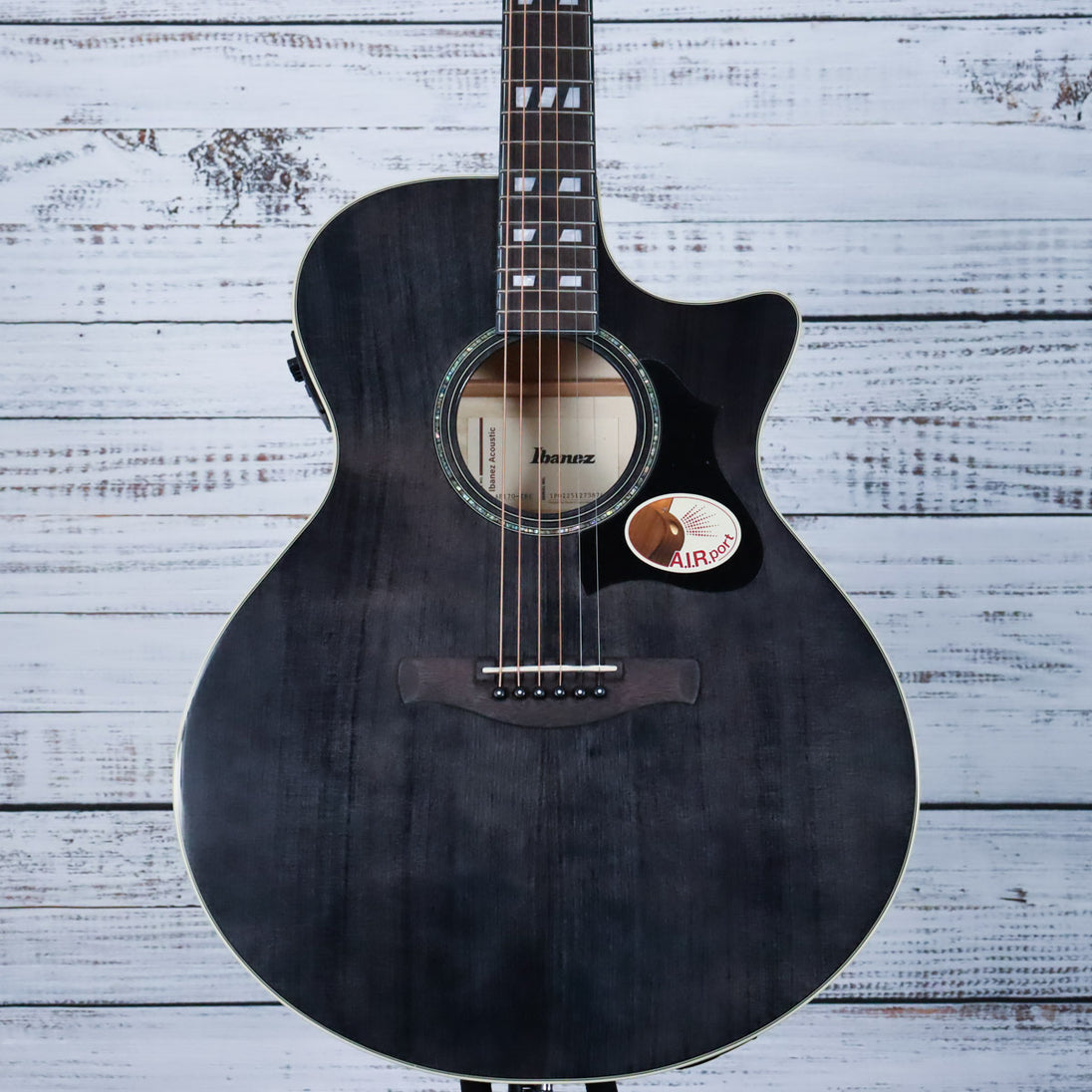

Ibanez AE170 Acoustic-Electric Guitar | Transparent Black High Gloss

The Ibanez AE170TBK delivers professional-grade tone in a player-friendly package. Its solid Sitka spruce top and flamed maple back produce warm, resonant acoustics, while the shallow AE body design offers comfortable playability for extended sessions. The thermo-aged ovangkol fretboard and bridge ensure durability and tonal clarity. Equipped with an Ibanez T-bar undersaddle pickup and AEQ-TP2 preamp with onboard tuner, this acoustic-electric transitions seamlessly from stage to studio. Dual XLR and 1/4" outputs provide flexible amplification options. The AE170 is built for musicians who demand both sound quality and refined aesthetics!

SPECIFICATIONS

Body Shape: AE (Shallower body depth)
Bracing: X-M Bracing
Top: Solid Sitka Spruce
Back & Sides: Flamed Maple
Neck: Comfort Grip Maple
Fretboard: Thermo Aged Ovangkol
Bridge: Thermo Aged Ovangkol (scalloped)
Inlay: Acrylic block
Soundhole Rosette: Abalone
Tuning Machine: Chrome Die-cast tuners (18:1 gear ratio)
Number of Frets: 20
Bridge Pins: Ibanez Advantage
Strings: D'Addario XTAPB1253
String Gauge: .012/.016/.024/.032/.042/.053
String Space: 11mm
Factory Tuning: 1E, 2B, 3G, 4D, 5A, 6E

ELECTRONICS
Pickup: Ibanez T-bar Undersaddle
Preamp: Ibanez AEQ-TP2 with onboard tuner
Output Jack: Balanced XLR & 1/4" outputs
Battery: 9V x1

NECK DIMENSIONS
Scale: 634mm/25"
Width: 43mm at nut, 54.33mm at 14F
Thickness: 20mm at 1F, 21mm at 7F
Radius: 400mmR

BODY DIMENSIONS
Length: 20-1/8"
Width: 16-1/4"
Max Depth: 4-1/2"
