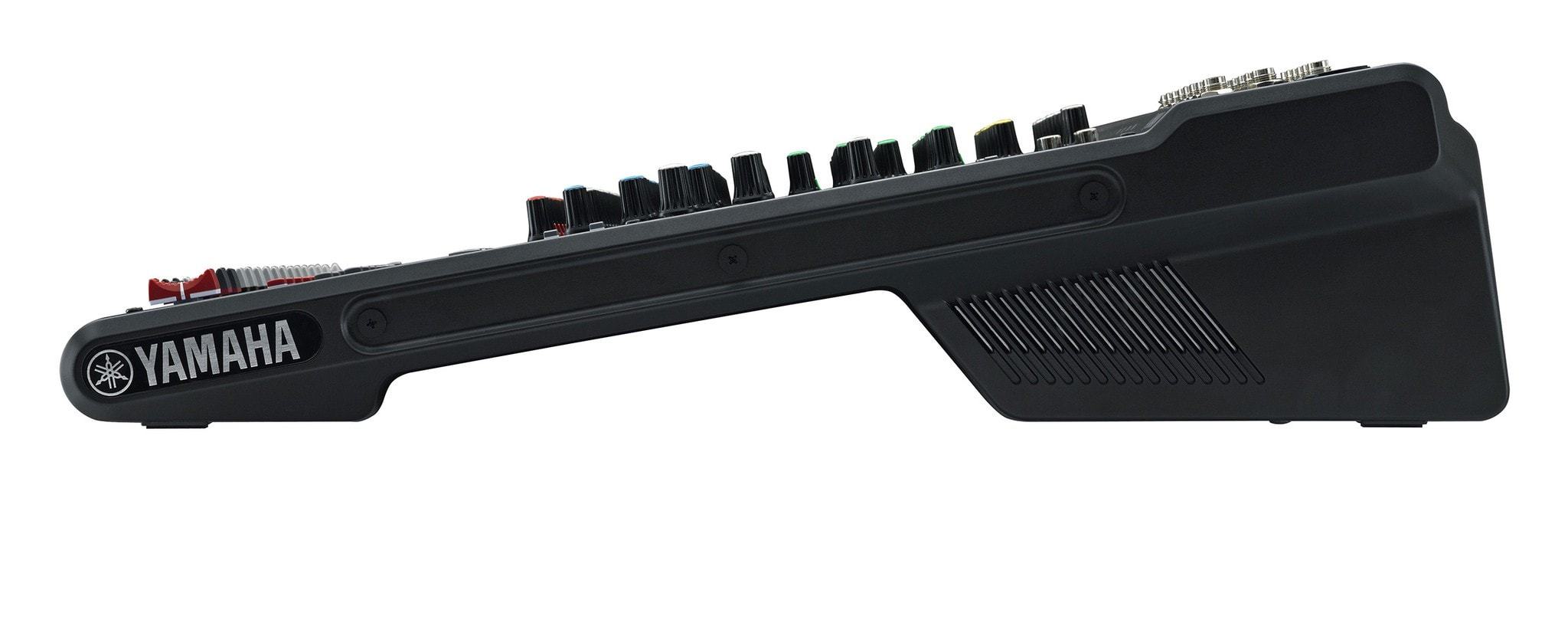

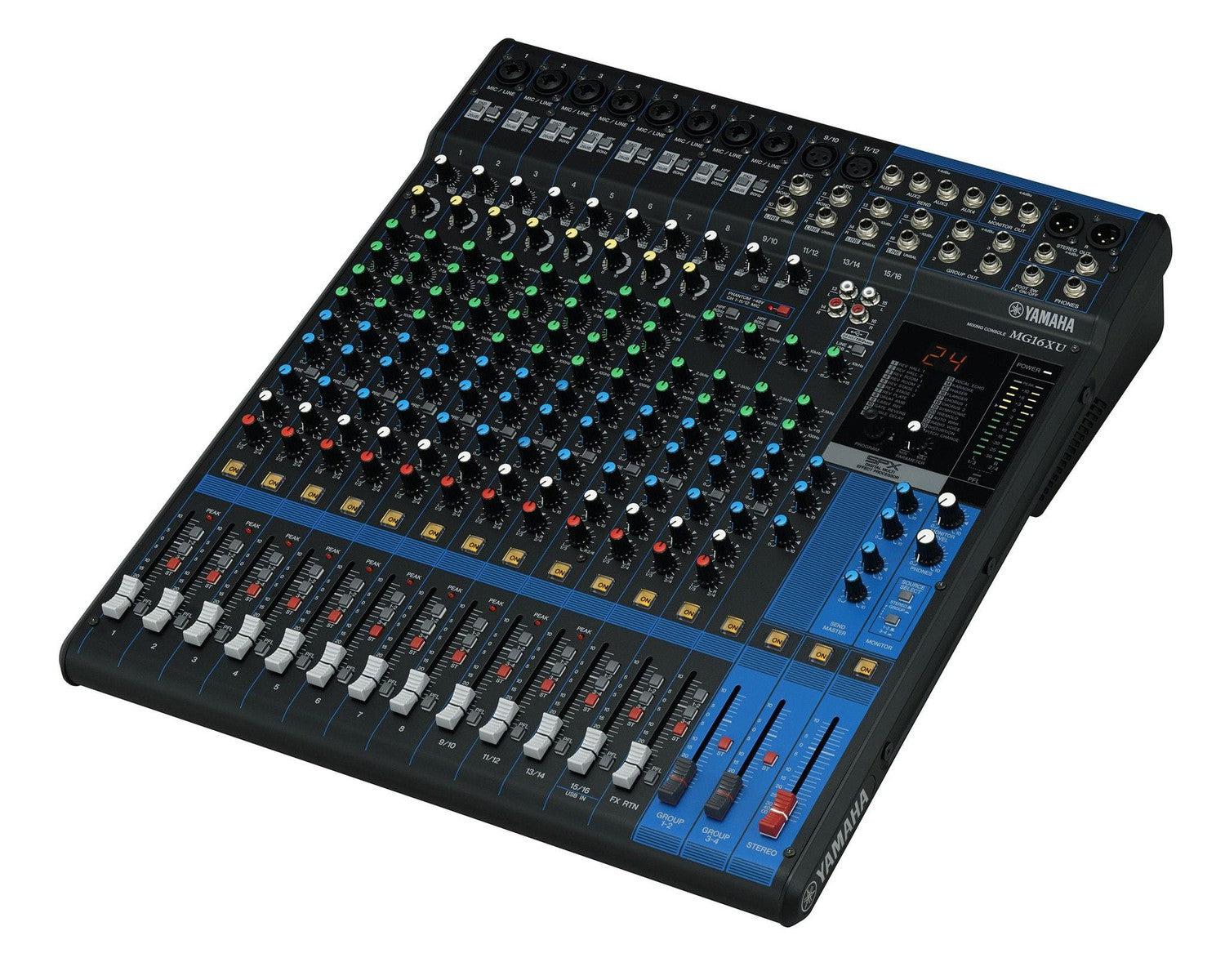

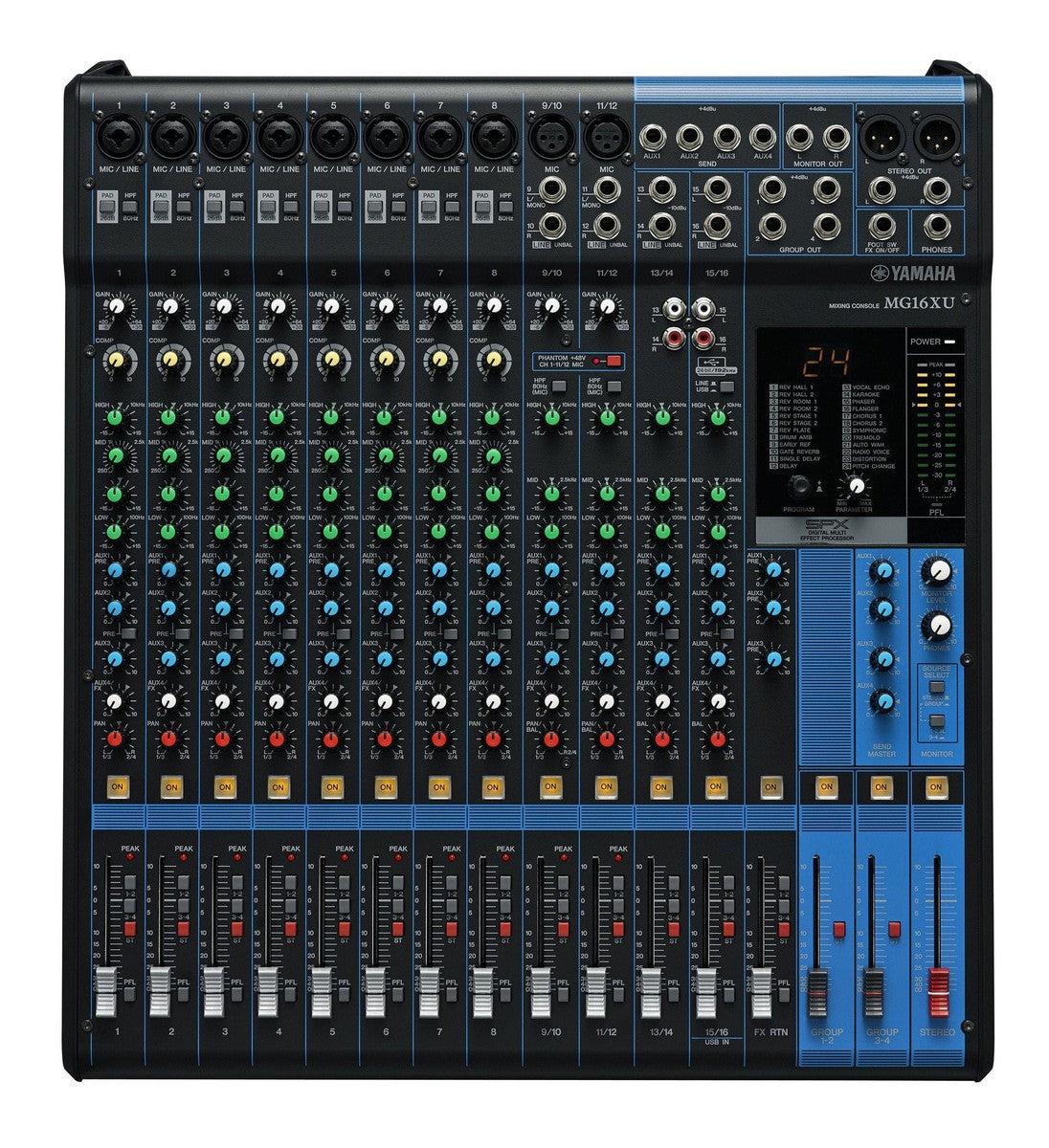

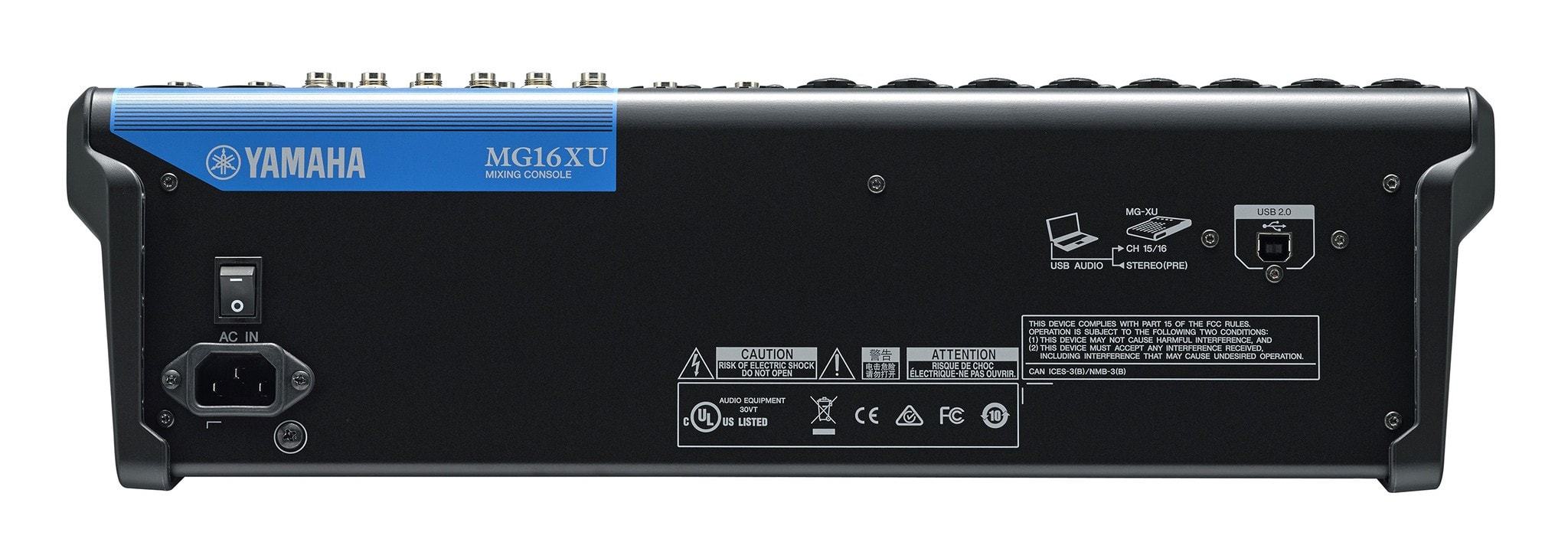

Yamaha MG16XU 16-Channel Pro Audio Mixing Console
- Product ID: MG16XU
- UPC/Barcode: 086792991221
and ready to ship!
|Grand Island, NE||0|
For a more precise control and enhancement of your sound, XU models of the MG Series come equipped with a suite of Yamaha's renowned SPX effects. Featuring high-resolution Chorus, Flanger, Distortions, Reverb and Delay, all with editable parameters, these are the same multieffects processors used on Yamaha's high-end mixing consoles, giving you the tools you need to elevate your mixes to a higher plane.
- 16-Channel Mixing Console
- Max. 10 Mic / 16 Line Inputs (8 mono + 4 stereo)
- 4 GROUP Buses + 1 Stereo Bus
- 4 AUX (incl. FX)
- “D-PRE” mic preamps with an inverted Darlington circuit
- 1-Knob compressors
- High-grade effects: SPX with 24 programs
- 24-bit/192kHz 2in/2out USB Audio functions
- Works with the iPad (2 or later) through the Apple iPad Camera Connection Kit / Lightning to USB Camera Adapter
- Includes Cubase Al DAW software download version
- PAD switch on mono inputs
- +48V phantom power
- XLR balanced outputs
- Internal universal power supply for world-wide use
- Rack Mount Kit Included
- Metal chassis
- Dimensions(W×H×D): 444 mm x 130 mm x 500 mm (17.5" x 5.1" x 19.7")
- Net Weight: 6.8 kg (15.0 lbs.)
- Mixing capability On-board processors SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off)
- I/O Phantom power +48 V
- Digital I/O USB Audio Class 2.0 compliant, Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit
- Input Channels Mono[MIC/LINE] 8
- Mono/Stereo[MIC/LINE] 2
- Stereo[LINE] 2
- Output Channels STEREO OUT 2
- MONITOR OUT 1
- PHONES 1
- AUX SEND 4
- GROUP OUT 4
- Bus Stereo: 1, GROUP: 4, AUX: 4 (incl. FX)
- Input Channel Function PAD 26 dB (Mono)
- HPF 80 Hz, 12 dB/oct (Mono/Stereo: MIC only)
- COMP 1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec
- EQ HIGH Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
- EQ MID Gain: +15 dB/-15 dB, Frequency: Mono 250 Hz – 5 kHz peaking, Stereo 2.5 kHz peaking
- EQ LOW Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
- PEAK LED LED turns on when post EQ signal reaches 3 dB below clipping
- Level Meter 2x12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB]
- General specifications
- Total harmonic distortion 0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min
- Frequency response +0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
- Hum & noise level Equivalent input noise -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
- Residual output noise -102 dBu (STEREO OUT, STEREO master fader: Min)
- Crosstalk -78 dB
- Power requirements AC 100 – 240 V, 50 / 60 Hz
- Power consumption 30 W
- Dimensions W 444 mm (17.5")
- H 130 mm (5.1")
- D 500 mm (19.7")
- Net weight 6.8 kg (15.0 lbs.)
- Accessories Included Accessory: Owner’s Manual, Technical Specifications, AC power cord, Cubase AI Download Information, Rack-mount kit, Optional Accessory: Foot Switch FC5
- Others Operating Temperature: 0 to +40˚C
