Product Description
The Digital Evolution of an Analog Classic
Acclaimed for their exceptional sound quality, versatility, and intuitive design, Yamaha’s MG series compact analog mixers have become an industry standard for users in a vast range of applications. The MGX series breaks considerable new ground, ushering in a new era of MG excellence, driven by a deeper pursuit of "True Sound" that faithfully captures and reproduces every nuance of a performance, as well as an impressive expansion of functionality and system flexibility to adapt to the ever-changing landscape of sound reinforcement and music production.
Blending advanced digital technology with the trusted legacy of the MG series, the MGX series is adept at handling a variety of demanding applications, including live sound, installed sound systems, podcast/live streaming and recording, as well as hybrid live and other video production applications that require handling not only audio but also video signals, supported by our two video models.
The digital evolution of an analog classic, the MGX series digital mixers will inspire performers, engineers, operators, and audiences in any audio environment, with their superior sound and exceptional performance.
Features
- For Live Sound, Podcasts, and Streaming
- 4 Combo XLR-1/4" Mic/Line Inputs
- 4 1/4" & RCA Inputs + XLR & 1/4" Outputs
- Dual USB: 18x18 Rec/Play + 2x2 Rec/Play
- Bluetooth Audio Input, MicroSD Recording
- Customizable Sound Pads
- Smart Gain + Studio Quality FX
- Built-In Compression and EQ per Channel
- Four Headphone Outputs
- Includes Expansive Software Library
Specifications
Max I/O Capacity: 16x Input / 8x Output
Analog Input Channels: 16
Mic Preamps: 4
Analog Output Channels: 8
Faders & Level Adjustment: 12 Fader
Built-In Effects: 13x Stereo Effect (Type Unspecified)
Analog Inputs:
4x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line Input, 4x 1/4" TRS Balanced/Unbalanced Stereo Line Input, 4x RCA Coaxial Stereo Line Input
Analog Outputs:
2x XLR Main Output, 8x 1/4" Output
Digital I/O: No
USB I/O: 2x USB-C
Wireless: No
Rack Mountable: Yes
Mixer
Max I/O Capacity: 16x Input / 8x Output
Analog Input Channels: 16
Mic Preamps: 4
Analog Output Channels: 8
Mix Routing: 1x Main LRC, 2x Bus, 1x FX Return
Presets: Yes
Display: 4.3" Touchscreen
Faders & Level Adjustment: 12 Fader
Meters: 12x LED
Signal Processing: Gain/Trim Range up to +86 dB, EQ: No, Graphic EQ: Yes, Solo/Mute: Solo, Solo-in-Place/AFL, Mute, PFL per Input Channel
Built-In Effects: 13x Stereo Effect (Type Unspecified)
Audio Delay: Yes
Automatic Mic Mixing: Yes
Digital Audio
Sample Rates: Up to 96 kHz
Frequency Response: 20 Hz to 20 kHz (at 1 kHz)
Analog Dynamic Range: 125 dB at Min Gain, 115 dB at Min Gain
THD: Mic Input < 0.002% at Min Gain (+4 dBu)
Signal Generator: Yes
Connectivity

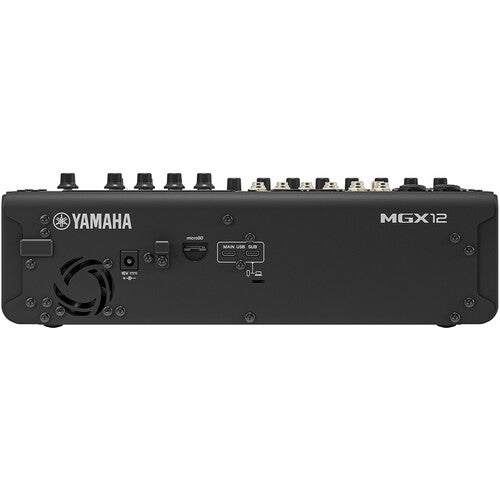

Analog Inputs:
4x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line Input, 4x 1/4" TRS Balanced/Unbalanced Stereo Line Input, 4x RCA Coaxial Stereo Line Input
Analog Outputs:
2x XLR 3-Pin Balanced Stereo Main Output, 8x 1/4" TRS Balanced/Unbalanced Stereo Output
Phantom Power: +48 V
Digital I/O: No
MIDI I/O: No
USB I/O: 2x USB-C
Wireless: No
External Display I/O: No
Recording
Max Multitrack Recording: 18 Tracks
Media Support: SD, USB Drive
Max Media Storage Capacity: 1 GB
Compatibility
OS Compatibility: macOS 15 or Later / Windows 11 or Later
RAM Requirements: 4 GB
Power
Input Power: 100 to 240 VDC
Physical
Rack Mountable: Yes
Operating Conditions: 32 to 104°F / 0 to 40°C
Dimensions: 13.2 x 12.5 x 3.8" / 33.5 x 31.8 x 9.7 cm
Weight: 8.6 lb / 3.9 kg
