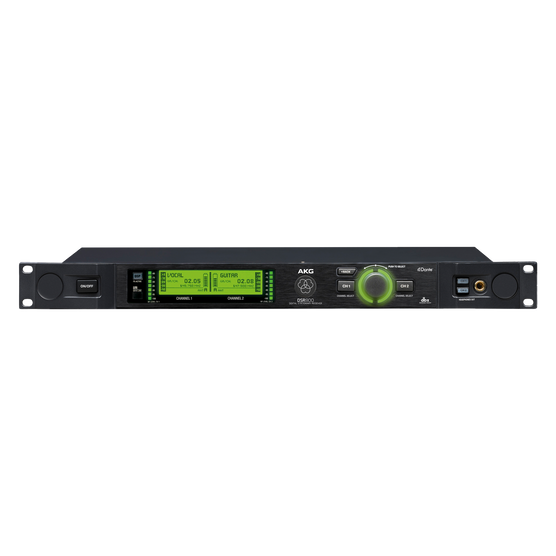

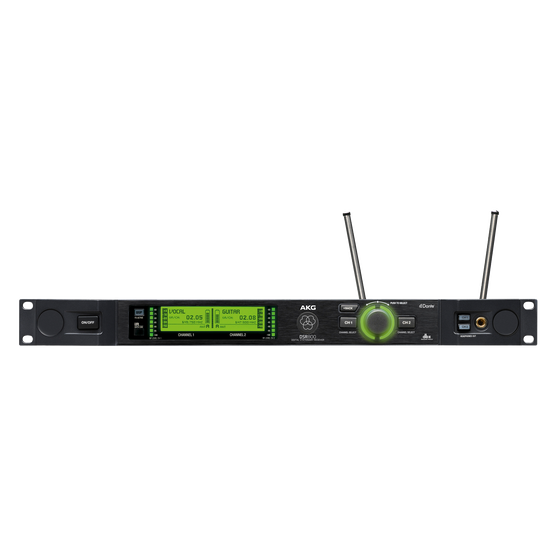

*B-STOCK* AKG DSR800 Reference 2-Channel Digital Wireless Receiver | Band1

*** No returns, exchanges, or refunds on B-STOCK or USED items. This item is like-new and priced to go. Please message us if you have any questions about this product. ***

The DSR800 reference two-channel digital wireless receiver provides an ultra-wide bandwidth of up to 150MHz for reliable operation with the flexibility to meet the needs of a wide range of applications. It is designed to work with the versatile DHT800 handheld transmitter, which offers interchangeable microphone capsules, and the DPT800 body-pack transmitter, for line- and microphone signals.

For enhanced flexibility, the DSR800 provides two digital audio outputs – for DANTE and AES EBU. The receiver finds interference-free channels and synchronizes the corresponding setup data to the transmitter via infrared signal. The environment scan converts the DSR800 into a spectrum analyzer, scanning the receiver’s frequency band for active radio frequencies and displaying the spectrum.

• Ultra-wide MHz bandwidth, ensuring stable transmission in highly-crowded RF environments
• Professional encryption to prevent unauthorized interception
• Dual-input capability allowing seamless integration with guitars, basses, or headsets
• Programmable smart switch (mute/power/quick RF off)
• Premium lightweight all-metal housing withstands physical wear

General Specifications
Power Supply: 100 - 240 V AC, 50 - 60 Hz, 0.4 A
Rack Size: Full Racksize (19)
Rack Height: 1 RU
Carrier frequency range (country-dependent): Band 1 = 548.1 – 697.9 MHz
Switching bandwidth: ≤ 150 MHz (country-dependent)
Channels: 2 (dual receiver)
Sensitivity: 10 dBµV / -97 dBm
Image frequency and spurious attenuation: ≥ 95 dB
Receiver design: Super-Heterodyne
Diversity system: Digital True Diversity
Antenna inputs: 2 x 50 Ω BNC sockets
Bass roll off: 2nd order shelving filter, selectable betw. 10–300Hz
Equalizer: 3-band (amplification or padding of the lows, mids and highs)
Compressor: dbx® (parameters)
Limiter: dbx® (parameter = usage threshold)
Transmitter battery indicator: 7‑segments
PC interface: Ethernet via HUB4000 Q (optional) ; Ethernet via Dante™ (100 Mbit/s) ; Software HiQnet Audio Architect

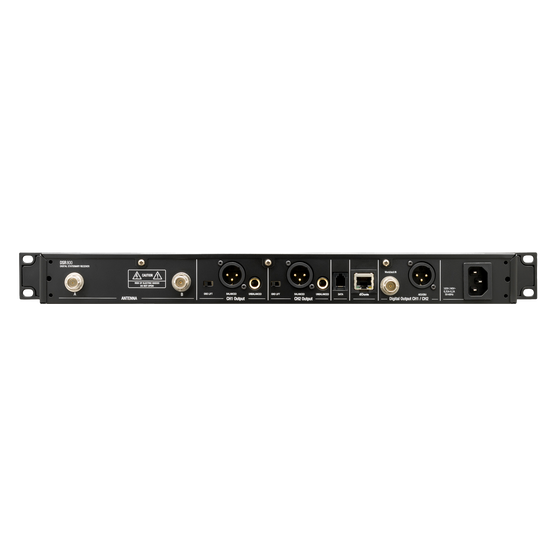

Audio Output
2 x analog: XLR symmetrical
2 x analog: 6.3 mm jack, unbalanced
1 x digital: AES-EBU XLR (48 kHz) with BNC Wordclock input
1 x digital: Dante™ (Ethernet) (48 kHz)
Audio output level: XLR bal. typ. +14 dBu (max.); 6.3 mm jack, un‑balanced typ. +8 dBu
